Overview

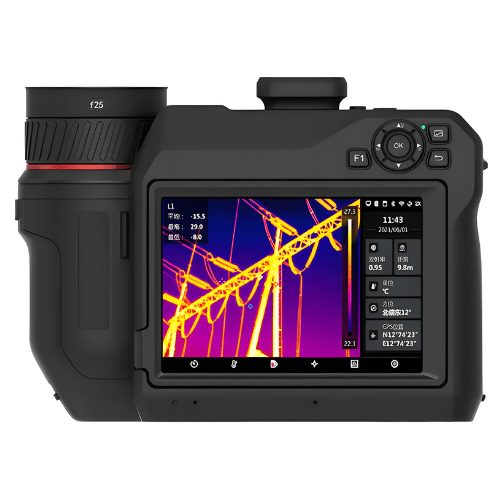

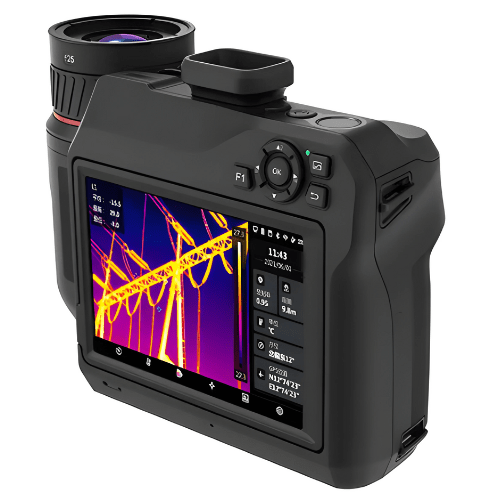

The camera is equipped with a high-sensitivity 640 × 512 detector, which can accurately measure temperature up to 1202 °F. The viewfinder and 356 °F rotatable lens makes all-weather outdoor inspections more convenient.
Features
- Support display 90° rotation
- Support 1X to 12X continuous digital zoom
- Support automatic AGC, manual AGC, one-key AGC
- Temperature measurement range 4° F to 1202° F

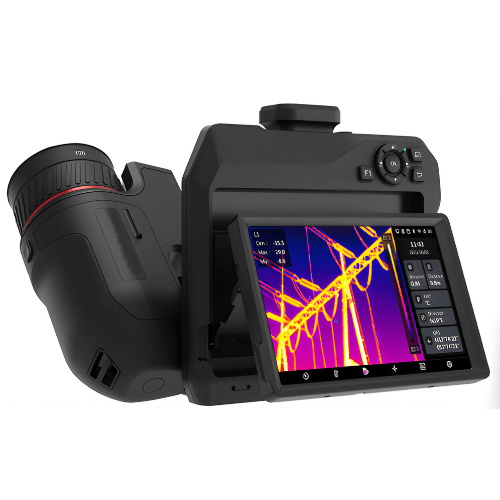

- Support lens rotation up to 180°
Technical Specifications
| IR Detector Resolution | 640 × 512 (327,680pixel) |
| Infrared Image Resolution | 640 × 480 (307,200pixel) |
| Thermal Imaging Lens Focal Length | 0.98-in (25.0 mm) |
| Focus Speed | About 1 s |
| Minimum Focus Distance | 0.65 ft (0.2 m) |
| Lens Recognition | Automatic |
| Aperture Number | F 1.0 |
| Display | 1280 × 720, 5-inch LCD touch screen |
| screen Brightness | Manual and automatic adjustment |
| lens Rotation | 180° |
| Display Rotation | 90° |
| Viewfinder | Built-in, 1024 × 768 pixels |
| Field Of View | 24.8° (H) x 18.7° (V), 65° (H) x 51° (V) |
| Cell Size | 17 µm |
| Spatial Resolution | 0.68 mrad |
| Response Band | 8 µm to 14 µm |
| NETD | <32.05 °F (-459.62 °F) @77 °F (<0.03 °C (30 mK) @25 °C) F# = 1.0 |
| Aperture Number | F 1.0 |
| Lens Recognition | Automatic |
