Overview

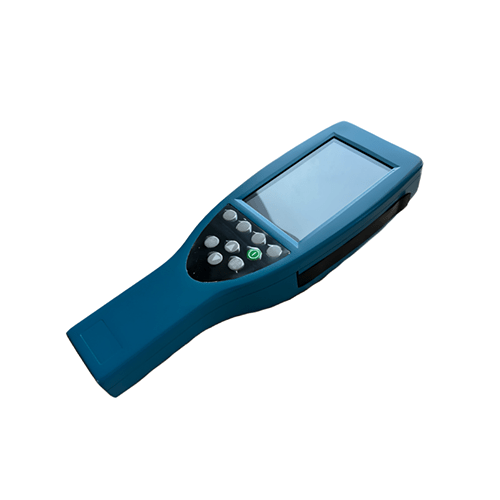

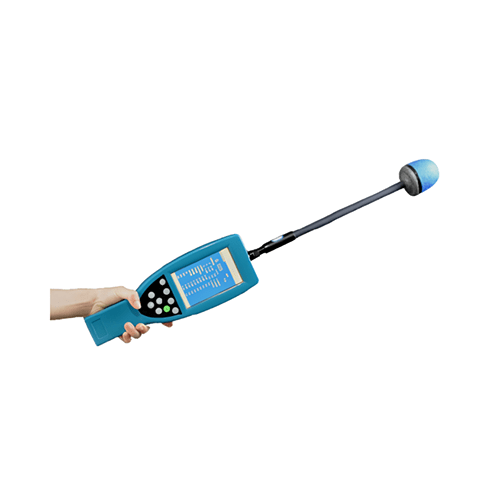

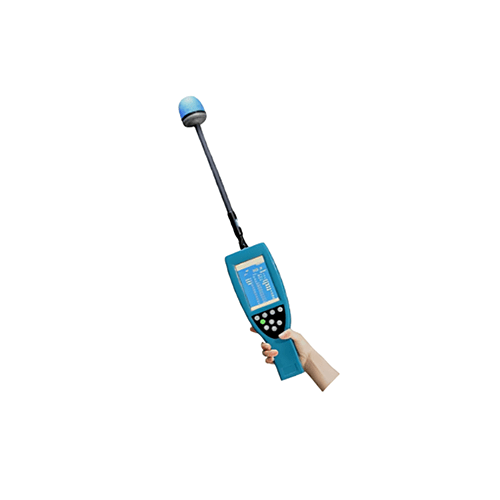

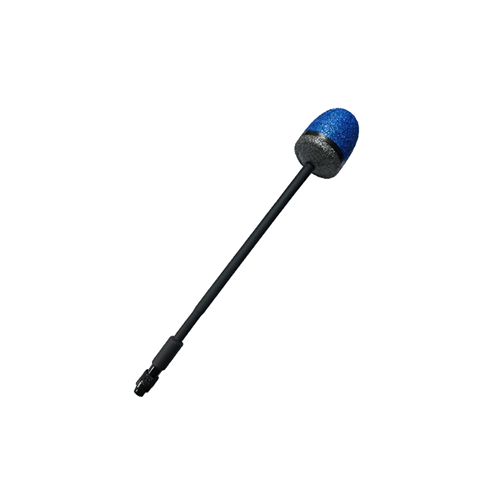

Enviro Testers high precision electromagnetic radiation measurement has microcontroller and sensor technology, and innovative electromagnetic field software calculation methods. It is a high-precision and highly reliable electromagnetic radiation measurement instrument designed in accordance with national electromagnetic radiation standards, which can accurately and quickly measure electromagnetic radiation in various complex environments. The instrument supports a testing frequency range of 1Hz-300GHz and can be equipped with different types of probes to indicate electric field strength Magnetic field strength, magnetic induction strength, and power density are used for testing to meet standard requirements and to establish human safety assessments.
Technical Specifications
| Frequency Range | 1 Hz to 300 GHz |
| Display Units | V/m, kV/m, uW/cm ²、 W/m ²、 MW/cm ²、 A/m, mA/m, nT UT, mT, standard weighting value%, automatically switching between V/m and KV/m based on the results |
| Result Type | Real time value, standard weighting value%, 15 second RMS, custom duration RMS, average value, maximum value, minimum value, statistical field strength value (E5, E50, E80, E95) |
| Sampling Interval | 200 ms |
| Data Refresh Interval | Real time value, standard weighting value, and three-axis real-time value refresh in 1 second，15 second RMS, average value, statistical field strength value refreshed in 15 seconds Customize the duration of RMS data to refresh according to the set time |
| Data Storage | 8 GB, no less than 100 w pieces of data |
| Battery | Usage time ≥ 9 hours, charging time ≤ 3 hours |
| Display Accuracy | Data displayed to 3 decimal places; percentage displayed to 1 decimal place |
| Temperature | Working temperature 14 °F to 104 °F (-10 ℃ to 40 ℃), storage temperature –40 °F to 140 °F (-40 ℃ to 60 ℃) |
| Tumidity | Relative humidity 0 % to 95 %, non-condensing |
| Protection Level | IP55 |
| Size | 12.5 in×4.3 in×1.7 in (320 mm * 110 mm * 45 mm) |
| Weight | 1.4 lb (0.6 kg) |
