Overview

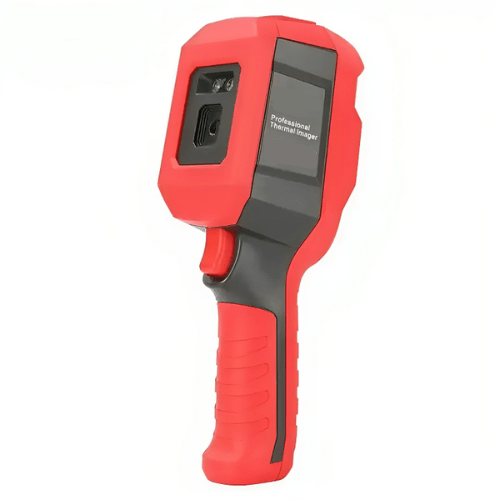

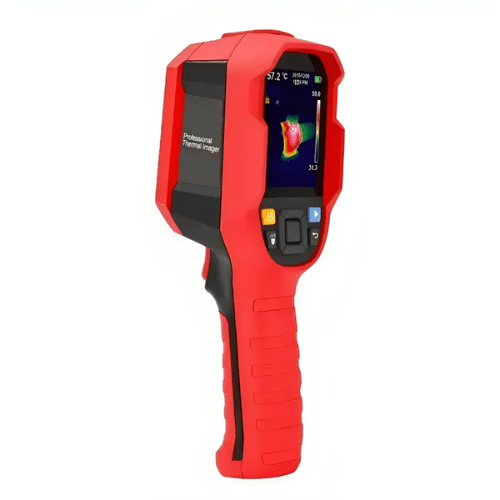

Enviro Testers High precision thermal imagery is an infrared thermal imager that combines surface temperature measurement with real time thermal imagery. Traditional infrared thermometers require each component to be measured one by one, but the thermal imager does not need to. The thermal imager can clearly display potential problems on the screen.
Features
- 8 in (71 mm) TFT screen
- LED flashlight
- Custom high and low temperature limit alarm
- SD card to store photos
- 5 swatches to choose from
- Emissivity adjustable (0.01 to 0.99) default 0.95
- Rechargeable lithium battery 5000 mAh (charged through Type-C interface)
- IP65 protection level, 2 meters drop
Technical Specifications
| Sensor | Lepton 3.5 |
| Resolution | 32.18 °F (0.1 °C) |
| Mode | Automatic gain |
| Precision | 35.6 °F (2 °C) or 2% |
| Measuring distance | 0.0001 mi (0.25 m) |
| Temperature response time | ≤500 ms (95% of reading) |
| Emissivity | 0.95 (default) (0.01 to 0.99 adjustable) The system has preset values |
| Thermal imaging pixel | 160 Pixel x 120 Pixel |
| Pixel size | 17 um |
| Field of view (FOV) | 56 o(H) x 42 o(V) |
| Instantaneous field of view | 11 mrad |
| Therma imaging sensitivity | ≤150 mk (0.15 °C) |
| Frame rate | <9 Hz |
| Image format | Bmp |
| Image saving | Automatic or manual |
| PC Analysis Software | Have |
| Data communication | Type c USB |
| Display type | 2.8 TFT LCD |
| Display resolution | 320 Pixel x 240 Pixel |
| Battery | Li-ion 3.7 V or 5000 mAh 18650 single section |
| Automatic shut down | Optional (5 min 10 min 30 min) default 30 min |
| Usage time | Not less than 6 hrs |
| Charging Time | 5 hrs |
| Charging voltage or current | 5 V or 2 A |
| Image storage | Micro SD card |
| Drop test | 78.74 in (2 m) |
| Working Humidity | <90% RH (non-condensing) |
| Altitude | Not more than 7.57 mi (12.19 km) |
| Storage temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Operating temperature | 32 °F to 140 °F (0°C to 60 °C) |
| Product size (L x W x H) | 9.29 in x 2.97 in x 3.386 in (236 mm x 75.5 mm x 86 mm) |
