Technical Specifications

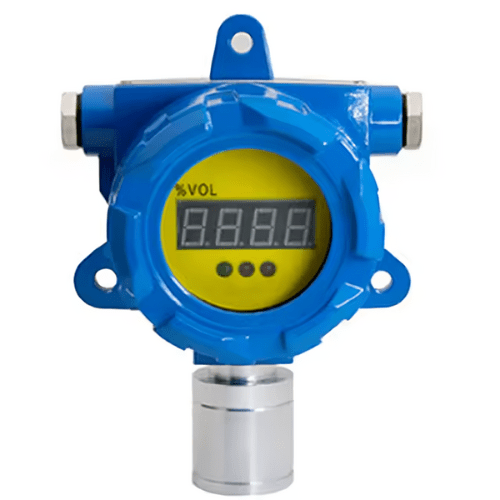

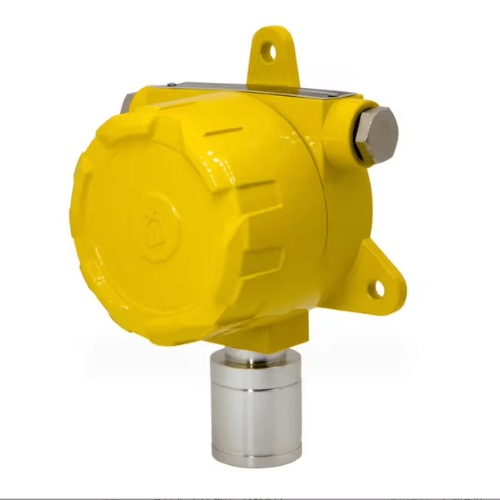

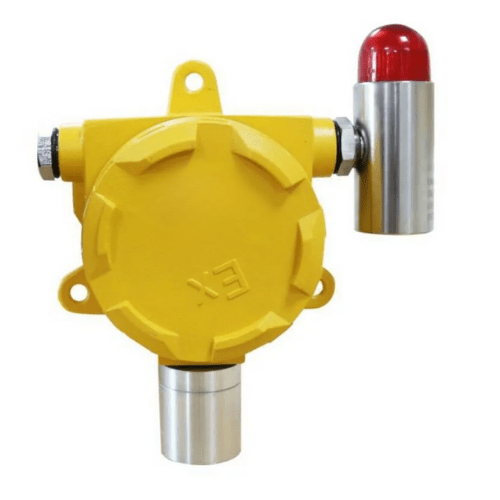

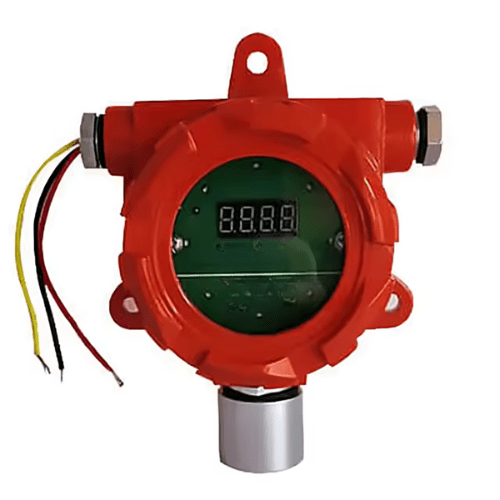

| Item | Wall hung gas detector industrial fixed explosion-proof ammonia gas alarm detector transmitter |
| Gas Detected | Combustible gas, toxic gas |
| Detection Range | (0% to 100%) LEL |
| Resolution Ratio | 1% LEL |
| Measurement Error | Full Scale ±3% LEL |
| Status Indication | LCD |
| Sampling Mode | Natural diffusion |
| Response Time | T 90 ＜ 15 s |
| Power | DC 24 V ±10% |
| Output Signal | 4 mA to 20 mA or RS 485 |
| Explosion Proof Grade | Exd ⅡC T 6 Gb |
| Ingress Protection | IP 66 |
| Size | 5.55 in × 7.008 in × 4.92 in (141 mm × 178 mm × 125 mm) |
| Weight | 7.71 lb (≤ 0.35 kg) |
