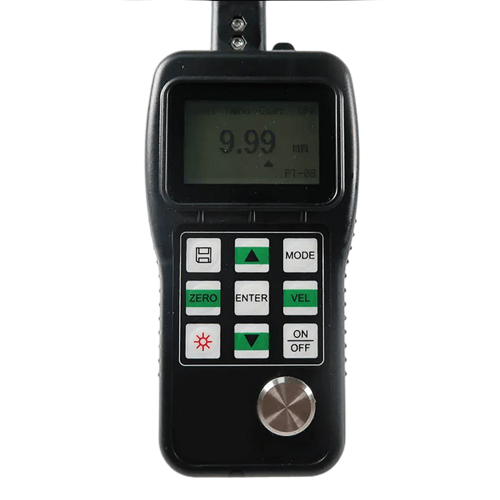

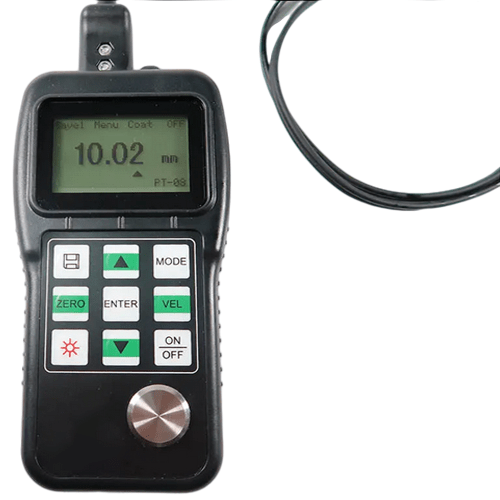

Enviro Testers Industrial Digital Ultrasonic Thickness Gauge

This industrial digital ultrasonic thickness gauge has tolerance of 0.00098 in, a display of 4 digital and measurement range of 0.031 in to 9.84 in.

SKU: ETEPSTG-105 Category:

Technical Specifications

Measuring Range (steel) 0.031 in to 9.84 in (Standard 0.8 mm to 250 mm depending on the probes)
0.11 in to 0.70 in
(Through coating 3 mm to 18 mm depending on the probes)
Display Resolution 0.00039 in or 0.0039 in
(0.1 mm or 0.01 mm)
Tolerance 0.00098 in (+/- 0.025 mm in steel)
Velocity Range 3280.84 ft/s to 32781.61 ft/s (1000 m/s to 9999 m/s)
Display Type 4 digital LCD with advanced backlight
Memory 500 Test Values
Power 2 pcs. 1.5 v AA Batteries
Outside Dimension 5.86 in × 2.87 in × 1.25 in
(149 mm × 73 mm × 32 mm)
Weight 0.0022 lb (160 g)
