Overview

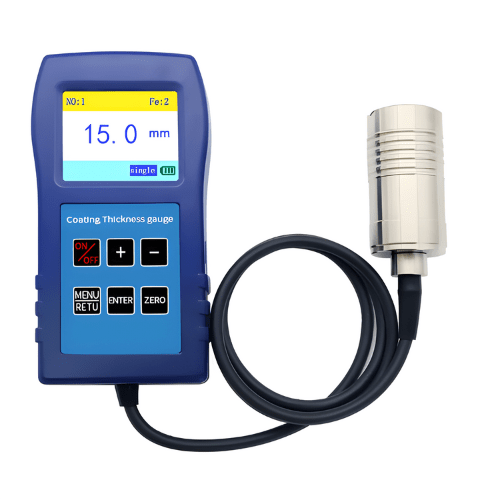

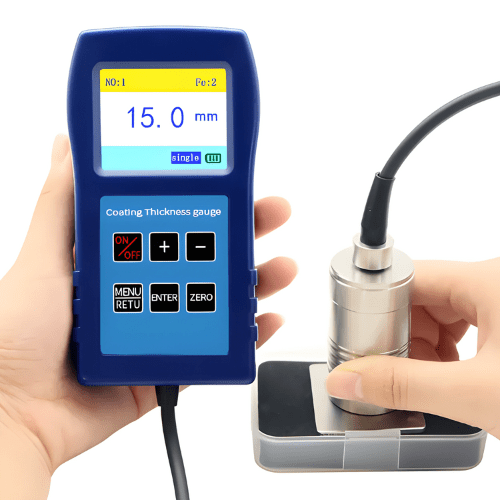

GAOtek industrial fireproof coating thickness gauge is a professional non-destructive testing instrument used to measure the thickness of nonmagnetic coatings and coatings on the surface of magnetic metal materials such as steel. Use the principle of magnetic induction measurement for fast non-destructive measurements. Magnetic thickness measurement method can be used to measure the thickness of non-magnetic coating on magnetic metal substrate (such as steel and iron) without damage (such as zinc plating, chromium, Gu, enamel, rubber, powder, paint, electrophoresis, enamel, plastic spraying, coating, anti-corrosion and fireproof.
Features
- Large ranges
- Alloy probe
- High precision
- 200 storages
- Clear display
Technical Specifications
| Measuring Range | 100 to 13000 μm |
| Minimum Contact Area | 1.26 in (32 mm) |
| Measurement Accuracy | ± (3%) H＋2 μm |
| Resolving Power | 0.1 μm or 1 μm |

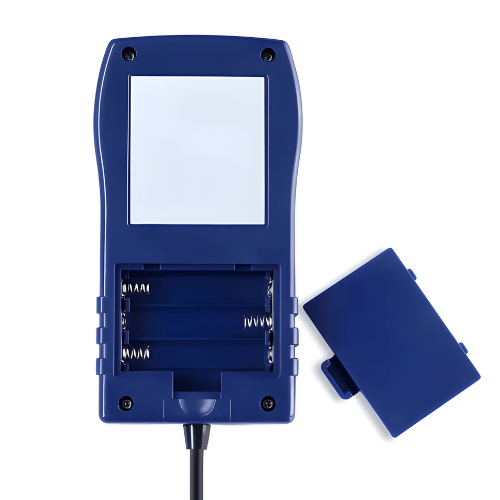

| Power Source | Three Alkaline Batteries |
| Size | 5.3 in x 2.5 in x 1.5 in (130 mm × 70 mm ×25 mm) |
| Display | 2.3-inch color screen |
| Weight | 0.57 lb (260 g) |
| Using Environment | 0 °F to 140 °F (0 ℃ to 60 ℃) |
