Features
- Fire certification
- Nigh-Ditched alarm
- Microprocessor
- Sensitiveness
- Stable performance
- Alarm quickly
- Name retardant material
- Plug and Play
Technical Specifications
| Sensor Type | Catalytic or electrochemical gas sensor |
| Gas | LEL: 0% LEL to 100% LEL, 1% LEL LEL Vapor: 0% LEL to 100% LEL, 1% LEL CO: 0 PPM to 1000 PPM, 1 PPM H2S: 0 PPM to 100 PPM, 1 PPM NH3: 0 PPM to 100 PPM, 1 PPM CL2: 0 PPM to 20 PPM, 0.1 PPM O2: 0% VOL to 30% VOL, 0.1% VOL SO2: 0 PPM to 500 PPM, 1 PPM CO2: 0 PPM to 6000 PPM, 1 PPM |
| Gas Sampling | Natural diffusion |
| Power Supply | DC 24 V ± 25% |
| Power Consumption | ≤ 3 W |
| Working Method | Continuous monitoring |
| Error Rate | ≤ ± 5% F. S |
| Indication Method | 4-digit LED light |
| Condition Display | 3 LED lights indicate fault alarm, L-alarm level alarm and H-alarm level |

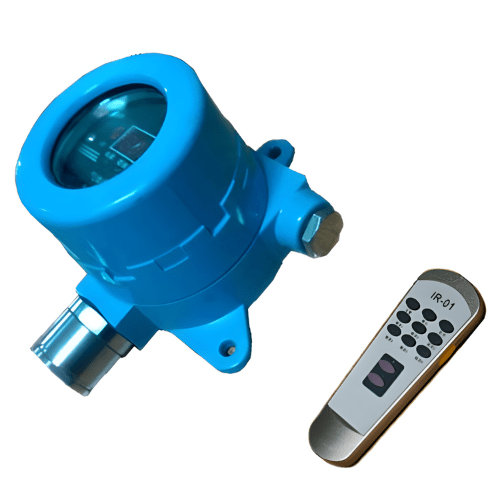

| Operation | Infrared remote control |
| Response Time | ≤ 30 s (LEL) or ≤ 60 s (toxic gas) |
| Working Humidity | < 93% RH |
| Explosion-Proof | Ex dIICT6 |
| Protection | IP55 |
| Pressure Limit | 86 kPa to 106 kPa |
| Signal Output | 4 mA to 20 mA, 2 relay output |
| Install Screw Thread | G3 or 4 in |
| Cable Dimension | ≥ 0.06 in (1.5 mm) 2 × 3 |
| Transmit Distance | ≤ 0.62 mi (1000 m) |
| Working Temperature | -40 ℉ to 158 ℉ (-40 ℃ to 70 ℃) (LEL) or -4 ℉ to 122 ℉ (-20 ℃ to 50 ℃) (toxic) |
| Size | 1 This Infrared Carbon Dioxide has working humidity less than 93% RH, working temperature of -40 ℉ to 158 ℉, and signal output of 4 mA to 20 mA..18 in x 1.18 in x 1.18 in (3.00 cm x 3.00 cm x 3.00 cm) |
| Weight | 3.31 lb (1.5 kg) |
