Overview

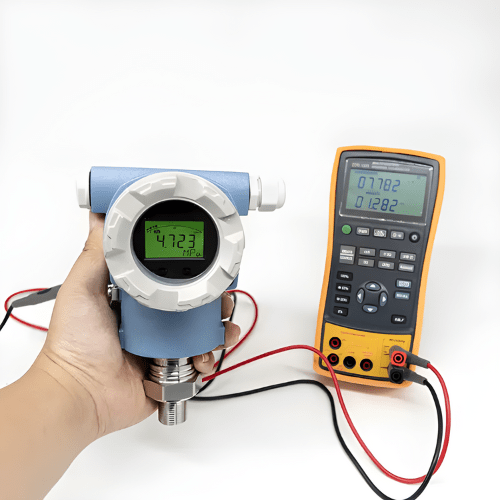

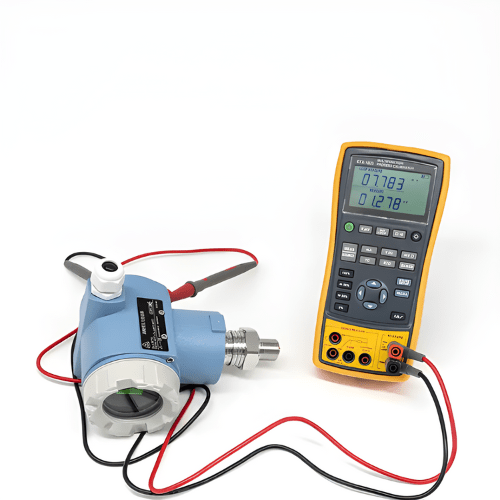

Enviro Testers intelligent multifunction process calibrator is a high precision hand-held signal measurement or output instrument, which can measure and output voltage, current, resistance, frequency, thermocouple at the same time. Various industrial process signals, such as thermal resistance, can be used to calibrate pressure transducers with external high precision intelligent pressure modules. It can replace current signal sources, voltage signal sources, resistance boxes, electronic potentiometer, frequency meter and other measuring and calibration instruments.
Features
- Super strong protection function
- The thermal resistance and thermocouple are simulated in the form of temperature
- simulate two-wire transmitter
- Two isolated channels support synchronous measurement and output
- manual backlight adjustment
- automatic power off function, suitable for field use
- Support customer self, Band on-off test function
- Thermocouple measurement
Technical Specifications
| Accuracy | 0.02% |
| Circuit power | DC 24 V |
| Current Signal | 0 mA to 24 mA |
| Relative humidity | 0% RH to 90% RH |
| Waterproof grade | IP67 |
| Use temperature | 14 °F to 131 °F (-10 ℃ to 55 ℃) |
| Storage temperature | -4° F to 140 °F (-20 ℃ to 60 ℃) |
| Outline dimension | 7.87 in × 3.66 in × 1.85 in (200 mm × 93 mm × 47 mm) |
| Weight | 1.43 lb (650 g) |
