Overview

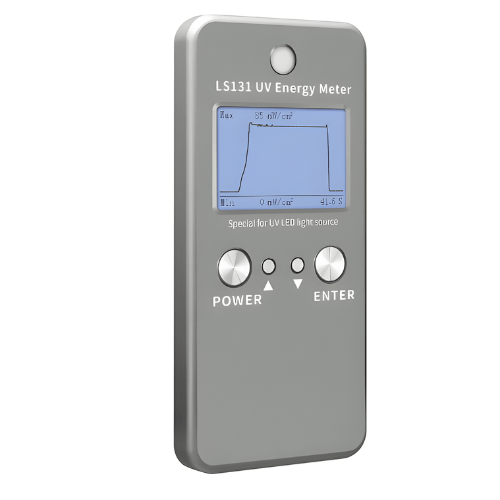

Enviro Testers light source outdoor meters is a professional instrument for UV LED light source detection. The UV energy meter can detect the power and energy value of UV light source. The UV radiometer puck has wide spectral response and can test UV LED light sources in various bands such as 365 nm, 375 nm, 385 nm, 395 nm, 405 nm. It is widely used in UV exposure, UV curing, UV flat printing, optical communications, and other industries.
Features
- It can detect the intensity and energy of UV LED light source at the same time
- High temperature resistant design
- Can run in the environment of 100 degrees Celsius for a long time
- The front detector design facilitates data reading during the test
- High-speed acquisition of 2048 times or second makes the test data more accurate
- Wide spectral response can measure UV LED light sources of various wavelengths
- Built-in timer can accurately record the length of UV curing time
- The stored data will not be lost when the power is turned off
- Long press the power button in the off state to enter the parameters setting mode
Technical Specifications
| Spectral range | 340 nm to 420 nm, calibrated at 395 nm |
| Power measuring range | 0 mW / cm2 to 40000 mW / cm2 |
| Power resolution | 1 mW / cm2 |
| Energy measuring range | 0 mJ / cm2 to 999999 mJ / cm2 |
| Energy measuring accuracy | ±10 % |
| Power supply | 2 AAA alkaline dry batteries |
| Display | 240 x 160 Dot matrix LCD |
| Dimensions | 6.29 in x 2.95 in x 0.51 in (160 mm x 75 mm x 13 mm) |
| Weight | 10.68 oz (303 g) |
