Overview

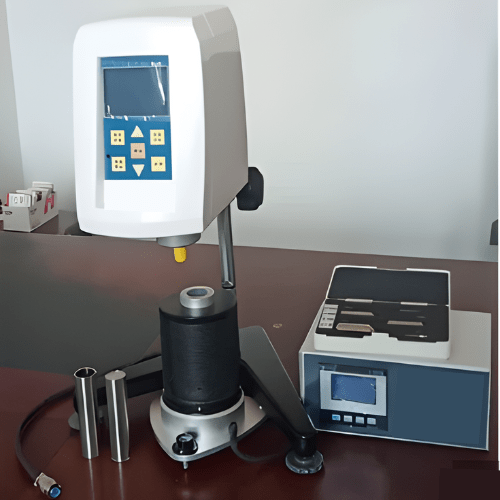

Enviro Testers Liquid Brookfield Rotational Viscometer, using rotary process to test the apparent viscosity of asphalt road in the temperature range above 45 ºC, by milli-Pascal seconds (MPa. s). Digital Viscometer for Liquids use rotary process to test the apparent viscosity of asphalt road in the temperature range above 45 °C, by milli-Pascal seconds (MPa. s). According to the measurement results, we can find out the recommended mixing and compaction construction temperatures.
Features
- Recommend mixing and compaction temperatures from measurement results
- High accuracy, stable viscosity display, easy to read
- Easy operation, good anti-jamming performance advantages
- Specifically used for asphalt road apparent viscosity measurement
- Measure viscosity of hot melt adhesive, wax, polymer
- Suitable for various fluids with stable and accurate readings
- Enhanced accuracy compared to similar products in the market
- Versatile application in construction, adhesive, wax, and polymer
Technical Specifications
| Parameter Names | Details |
| Measuring Range | 14503.8 pSi.s to 29007547.5 pSi.s (100 mPa.s to 200000mPa. S) |
| Rotor Size | 27 # rotor (21 #, 28 #, 29 # rotor is optional) |
| Rotor Speed | 5 r/ min, 10 r/ min, 20 r / min, 50 r/ min |
| Measuring Modes | Manual, automatic |
| Measurement Error | ± 3 % F.S |
| Temperature Range | RT 68 °F to 392 °F (+20 °C to 200 °C) |
| Temperature Accuracy | ± 32.18 °F (± 0.1 °C) |
| Power Supply | Voltage 220 V ± 10 V, frequency 50 Hz ± 10 Hz |
| Net Weight | 5.51 lb (2.5 kg) (not including the base form at the top) |
| Boundary Dimensions | 4.13 in x 4.72 in x 6.30 in (105 mm × 120 mm × 160 mm) (Do not include the base) |
