Overview

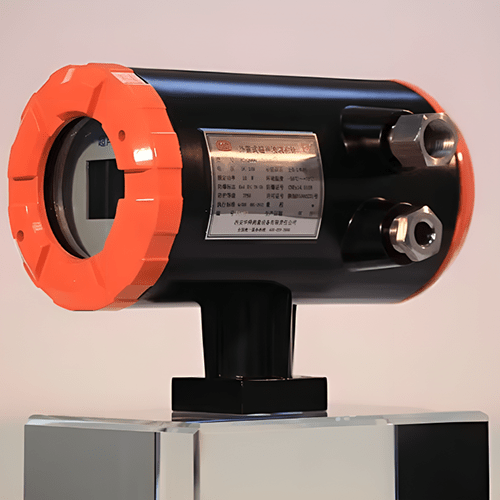

Enviro Testers liquid level meter depth measurement instruments for HALON Tank Measurement is a great revolution in liquid level measurement history because the probe of such product is installed on the external surface of tank wall without drilling.
Technical Specifications
| Measuring Range | 3 m, 5 m, 10 m, 20 m, 30 m |
| Display Resolution | 0.03 in (1 mm) |
| Short Time Repetition Rate | 0.03 in (1 mm) |
| Measuring Error | 1‰ to 1%(Excessive wall thickness and instability of pressure and temperature may affect measurement precision.) |
| Span Shift | ±10 m |
| Current Output | 4 mA to 20 mA, Max load 750 Ω |
| Communication Interface | RS-485, IrDA |
| Ambient Humidity | 15 % to 100 % RH |
| Explosion Proof Mark | ExdⅡCT6 |
| Housing Ingress Protection | IP67 |
| Liquid Level Display | 6 Digits OLED display (Unit: m) |
| Ambient Temperature For Operation Panel | -58 ℉ to 158 ℉ (-50 ℃ to 70 ℃) |
| Ambient Temperature For Ultrasonic Probe | -58 ℉ to 248 ℉ (-50 ℃ to 120 ℃) (Probe with wider temperature range is available） |
