Overview
Enviro Testers manual focus thermal imager is a professional enhanced thermal camera that is specially designed for industrial use with a wide temperature range. Its large 4.3 in IPS display screen can display 384 × 288 IR resolution and a 5 MP digital camera. The professional manual focus lens can flexibly adjust the focal length according to different objective distances and provide high-quality images. Its thermal camera also has other features: such as Wi-Fi capability, Isotherm, and a screen analyser, It’s a perfect troubleshooting tool for many industrial applications.
Features
● 4.3 in IPS display (800 × 480)
● IR resolution: 384 × 288
● On-screen analyser: 5 Points/1 Line/5 Rectangles/5 Circles
● Digital camera resolution: 5 MP

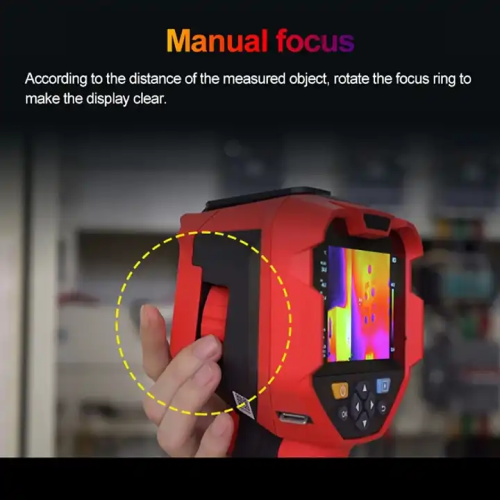

● Focus: Manual focus
● Digital zoom: 2x, 4x
● Image modes: Thermal, Visual Image, Fusion, PIP
● Colour palettes: white hot, black hot, red hot, iron bow, rainbow, lava
● Isotherm: 2 (Auto / Manual)
● Wi-Fi connection through Mobile App
● PC software: analysis and real-time image projection
● 5200 mAh replaceable battery pack (Type C rechargeable)
Technical specifications
| Sensor | Uncooled vanadium oxide |
| Mode | Auto gain |
| Accuracy | Target temperature: -4 °F to 1202 °F (-20 °C to 650 °C), Ambient temperature 77 °F (25°C): 35.6 °F (±2 °C) / +2% (whichever is greater) |
| Emissivity | 0.95 (default) 0.01 to 1.00 |
| Pixel size | 17 μm |
| Thermal imaging | 384 x 288 pixels |
| Visible light pixels | 5 million |
| Palettes | Red Hot, Rainbow HC, Rainbow, Lava, Iron, Black Hot, White Hot |
| Infrared spectrum bandwidth | 8 μm to 14 μm |
| Field of view | 28° x 21° |
| IFOV | 1.3 mrad |
| Lens focal length | 0.51 in (13 mm) |
| Focus mode | Manual |
| Sensitivity | < 60 mK at 77 °F (25 °C) |
| Frame rate | 25 Hz |
| Digital zoom | 1 x, 2 x, 4 x |
| Temperature analysis | 5 points, 5 areas, 1 line (up to 6 analysis objects can be added at the same time) |
| Isotherm | Manual/Auto |
| Temperature display | Centre points temperature, high/low-temperature tracking |
| Unit | °C / °F |
| High/low-temperature alarm | Yes (LCD alarm) |
| Image modes | Thermal, visible, fusion, PIP |
| Image capture mode | Photograph |
| Image saves format | BMP |
| Image viewing | Temperature analysis, change the palette, Remark |
| USB communication | Type-C USB (real-time image and U disk storage) |
| WI-FI | Yes |
| PC screen projection | Yes |
| PC analysis software | Yes (real-time image, photo download, and analysis) |
| Drop proof | 6.56 f (2 m) |
| IP rating | IP 54 |
| Charging voltage/current | 5 V / 2 A |
| Charging time | <5 hrs |
| Temperature range | -22 °F to 1202 °F (-30 °C to 650 °C) |
| Operating humidity | 10 % RH to 95 % RH (non-condensing) |
| Storage temperature | 14 °F to 140 °F (-10 °C to 60 °C) |
| Operating temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Weight | 22.0 lb (10 kg) |
