Overview

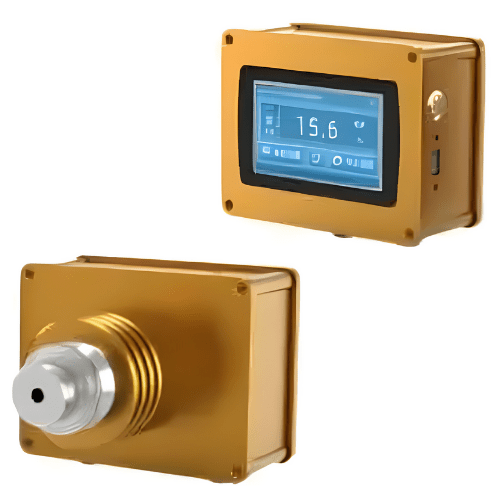

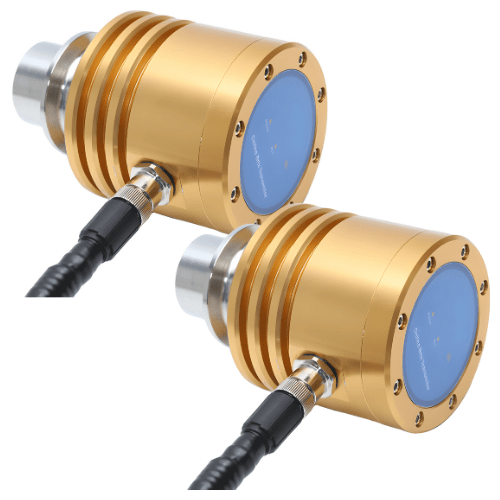

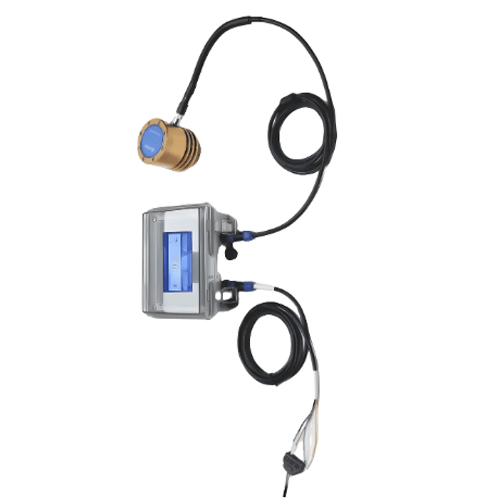

Enviro Testers Measurement High Quality IR Refractometer is usually installed as a bypass at the outlet of each circulation pump of the triple effect evaporator. It can monitor the concentration of juice, jam and sugar in each effect online and output the concentration value to the PLC for accurate PLC control to improve product quality, reduce production costs, achieve continuous production and increase production efficiency. It is also recommended for soft drinks mixing and filling, pharmaceutical evaporation and concentration processes.
Features
- Flexible installation (in pipes, tanks, reactors, storage tanks…), compact size, diversified installation methods
- Unaffected by color, turbidity, viscosity…, changes in liquid pressure, sudden changes in flow, turbulence
- Factory calibration certificate, built-in temperature compensation, ready to use, no need for on-site calibration
- Simple and easy to understand operation
- Automatic data storage, easy to query
- Low power consumption, high stability and long service life
Technical Specifications
| Range | Determined by the actual working conditions to achieve the best possible accuracy and resolution |
| Concentration Range | 0.0 % Brix to 100 % Brix |
| Refractive Index Range | 1.3330 to 1.4655 |
| Resolution | 0.1 %, refractive index 0.00002, temperature 32.8 °F (0.1 °C) |
| Measurement Accuracy | +/-0.1% absolute, or refractive index of +/-0.0002 |
| Material Of Key Parts | Large wear-resistant sapphire, 9 Mohs hardness |
| Input Power | 24 V DC |
| Signal Output | 4 mA to 20 mA, RS485/232 digital value
On to off value (Abnormal alarm, 2 outputs for upper and lower limits) |
| Temperature Compensation | Automatic temperature compensation, 32 °F to 140°F (0°C to 60 °C) |
| Ambient Temperature | 32 °F to 140 °F (0 °C to 60 °C) |
| Measuring Temperature | 32 °F to 176 °F (0 °C to 80 °C) |
| Net Weight | 44.09 oz (1250 g) |
