Features
- Measurement range of 1 mA to 1000 A AC
- Small and compact size
- Ergonomic design and easy operation
- Low phase shift for power measurement
- With load capacity ≤4 Ω
- Lead output 0.9 in
Technical Specifications
| Primary Current | 0 A to 1000 A AC |
| Secondary Current | 0 A to 5 A AC |
| Output Signal | 500 mA, 1 A, 5 A AC at nominal input current |
| Frequency Range | 40 Hz to 2000 Hz |
| Dielectric Strength | 3 KV 50 Hz or 60 Hz at 1 minute |
| Temperature Range | -4 °F to 131 °F (-20 °C to + 55 °C) |

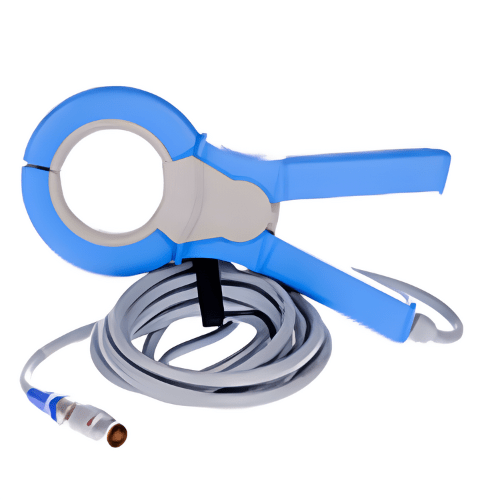

| Output | 8.20 ft (2.5 m) cable with D01 connector |
| Dimensions | 40.5 in x 86.4 in x 1.1 in (102.9 mm x 219.6 mm x 28 mm) |
| Weight | 1.2 lb (550 g) |
