Technical Specifications
| Spectral Range | 8 μm to 14 μm |
| Frame Rate | 25 FPS |
| Focus Mode | Manual focus |
| IR Resolution | 260 x 200 384 x 288 640 x 480 |
| Netted | 70 mK at 77 ℉ (25 °C) 50 mk at 77 ℉ (25 °C) |
| The Angle of the Visual Field | 36° X 25° 56° X 42° 56° X 420° |
| Temperature Correction | Manual / Automatic |
| Emissivity Correction | Adjustable within 0.1 to 1 |
| Data Sampling Frequency | It can be configured flexibly, such as 20 FPS, 10 FPS, 5 FPS, and 1 FPS. |
| Image File | Full-temperature JPG thermogram (Radiometric-JPG) |
| Video File Format | MP4 |
| Operating Voltage | DC 5 V battery |
| Operating Temperature Range | -4 ℉ to 1022 ℉ (-20 °C to 550 °C) |
| Temperature Measurement Method | Maximum temperature, minimum temperature, and average temperature |
| Temperature Measurement Accuracy | +2 or +2% for 14 ℉ to 248 ℉ (-10 °C to 120 °C), and +3% for 248 ℉ to 1022 ℉ (120 °C to 550 °C) |
| Weight | 4.41 lb (2 kg) |

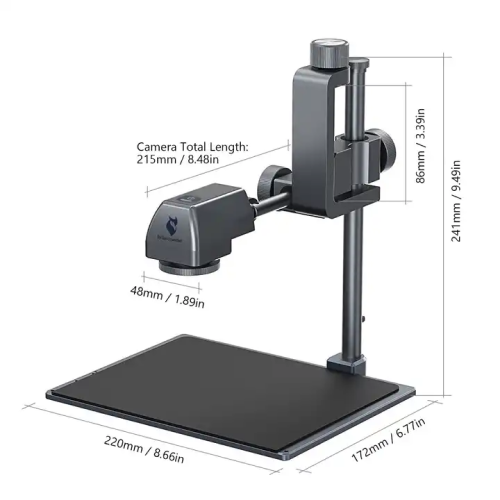

| Device Dimension | Single board 8.7 in x 6.8 in x 9.5 in (22 cm x 17.2 cm x 24.1 cm) Double board 13.6 in x 8.7 in x 13.4 in (34.6 cm x 22 cm x 34.1 cm) |
| Temperature Range | 14 ℉ to 842 ℉ (-10 °C to 450 °C) |
| Working Temperature | 14 ℉ to 1022 ℉ (-10 °C to 550 °C) |
