Overview

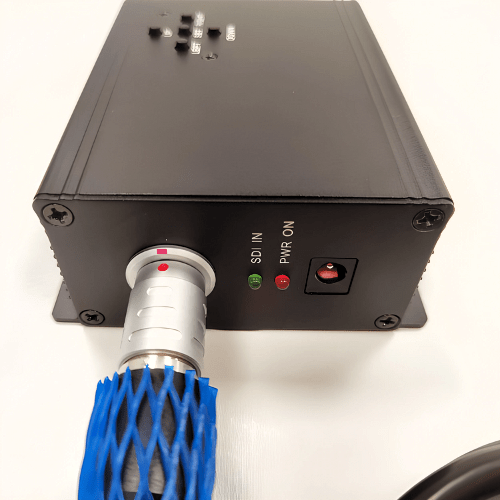

Full-featured endoscopy solution designed specifically for medical treatment. Multi-function Handle camera, input SDI 1080p 60FPS and CVBS 720P 60 FPS, output SDI(CVBS)/HDML, with OSD button on the image processor, easy operation and good performance.
Features
- Can be used in experiments, teaching, medical etc
- Using 3m medical silicone wire
- 2-million-pixel HD SONY COMS
- HDMI signal external display
- Light, simple and convenient
Technical Specifications
| Key Words | Portable Endoscope Handle Camera |
| Sensor | 1/2.8” CMOS |
| Effective Pixel | 1945(H) × 1092(V)Approx. 2.12M pixels |
| Output Signal | SDI+HDMI |
| Frame Rate | 1080P (25fps/60fps) |
| S/N Ratio (Signal To Noise Ratio) | >42dB |
| Quick Function | Freeze, white balance, 0-8x zoom in and out |
| Brightness | 1 to 20 steps |
| Auto AGC | 1 to 20 steps |
| Sharpness | 1 to 20 steps |
| Endoscope Handle Cord Length | 3M |
| Endoscope Mount | International standard C-mount, which can be connected to imported domestic hard mirrors |
| Endoscope Mode | Transforaminal/Fiber/Arthroscope/Cystoscope/Hystero/Raparoscope/E.N.T |
| Waterproof | IP67 |
| Working Temperature | -30℃ to 60℃ (-22 to 1400 F) |
| Language | Chinese/English/Japanese/Korean polyglot |
| Power(Max.) Supply | DC12V |
| Power Consumption | 1.2W（≤100mA ） |
| Product Size | 11.5cmx9cmx3.6cm |
