Features
- Versatility in Use Suitable for various settings like air conditioning, disco, machinery, and combustion systems
- Effortless Measurements Easily measures sound pressure levels and peak sound levels
- Simple Adjustments Includes an easy-to-use screwdriver for quick settings
- Flexible Settings Offers frequency and time weighing options
- Clear Alerts Indicates overload and underload conditions
- Memory Function Records maximum and minimum sound levels

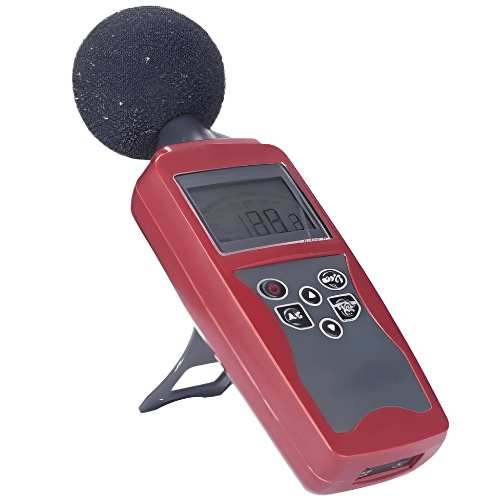

- Easy Mounting Features a built-in tripod knuckle screw
- Reliable Compliance Meets DIN EN 60651 (IEC 651) standards, Class 2
Technical Specifications
| Sound Pressure | A is 30 dB to 130 dB C is 35 dB to 130 dB |
| Accuracy | ±1.5 dB |
| Resolution | 0.1 dB |
| Sample Rate | 2 times/s |
| Dynamic | 50 dB |
| Frequency | 31.5 Hz to 8 kHz |
| Manual Range | 30 dB to 80 dB 50 dB to 100 dB 60 dB to 110 dB 80 dB to 130 dB |
| DC Signal Output | 0 V to 2.5 V, 25 mV/dB |
| Power Supply | 1 x 9 V 6F22 batteries |
| Size | 8.66 in x 2.87 in x 1.37 in (220 mm x 73 mm x 35 mm) |
| Weight | 10.22 oz (290 g) |
