Overview

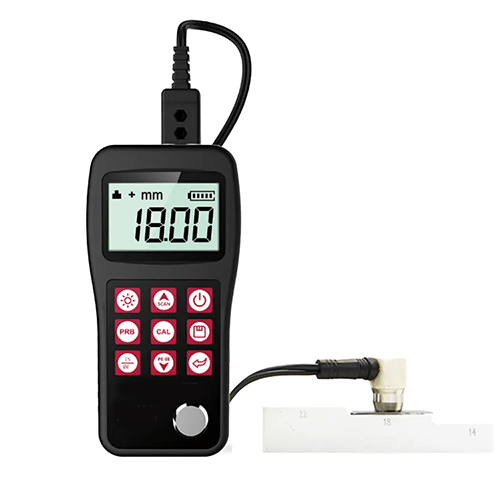

Enviro Testers Multi-Mode Ultrasonic Thickness Gauge with Backlight is capable of measuring the thickness of various materials with accuracy as high as 0.0039 into 0.00039 in (0.1 mm to 0.01 mm). The multi-mode feature of the gauge allows the user to toggle between pulse-echo mode (flow and pit detection), and echo-echo mode.
Technical Specifications
| Display | 4.5 Digits LCD with EL backlight |
| Sound Velocity Range | 1000 m/s to 9999 m/s |
| Resolution | 0.0039 in to 0.00039 in (0.1 mm to 0.01 mm) |
| Measuring Range | 0.025 in to 23.62 in (0.65 mm to 600 mm) (P to E), 0.12 in to 2.36 in (3 mm to 60 mm) (E to E) |
| Working Frequency | 2.5 MHZ to 7 MHZ |
| Min. Pipe Diameter | 0.59 in x 0.08 in (15 mm x 2.0 mm) |
| Accuracy | ± (0.5 % Thickness + 0.001 in (0.01 mm)) |
| Single /Scan Mode | Seven measurements readings per second in single point mode |
| Probe Calibration | Zero Calibration |
| Single Package Size | 19.68 in x 7.87 in x 3.93 in (500 mm x 20 mm x 10 mm) |
| Single Gross Weight | 13.23 lb (6.000 kg) |
