Overview

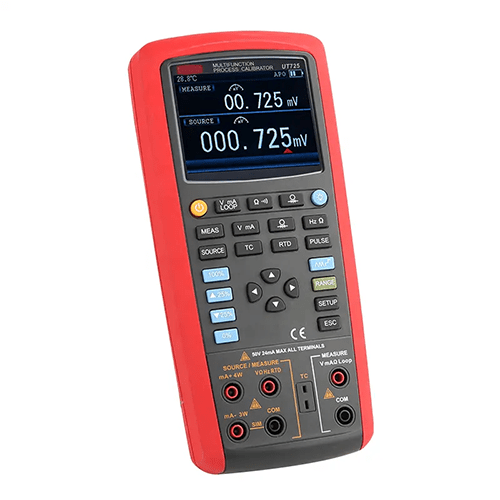

Enviro Testers multifunction dc voltage loop process calibrator measures and sources loop current and voltage. It is designed with 0.02% accuracy, adjustable backlight, and auto power off. It is a powerful tool for calibration, repair, and maintenance of mA loops.
Features
- Step or ramp functions
- Sources and measure accuracy up to 0.02%
- Rechargeable battery
- Contrast adjustment
- Auto power off (Time adjustable)
- Stores and recalls setups

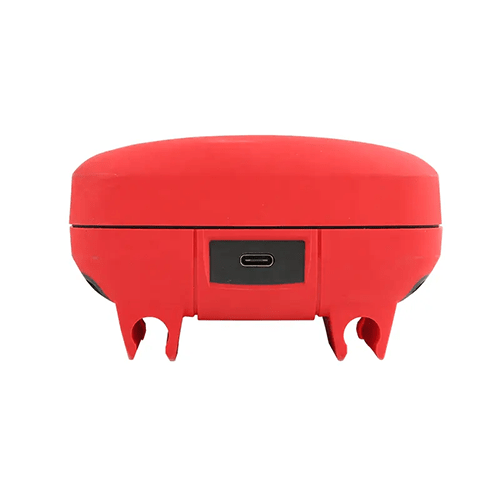

- USB communication
- Provides 24 V loop power to transmitter
- mA current measurement
Technical Specifications
| DC voltage | 200 mV or 30 V ± (0.02%+2) |
| DC current | 20 mA ± (0.02%+2) |
| Loop current | 20 mA ± (0.02%+2) |
| Frequency | 100 Hz or 1 kHz or 100 kHz ± (0.01%+1) |
| DC voltage | 100 mV or 1000 mV or 10 V ± (0/02%+10) |
| DC current | 20 mA or 20 mA (SIM) ± (0.02%+10) |
| Frequency | 200 Hz or 2000 Hz or 20 kHz ± (0.01%+1) |
| Pulses | 100 Hz or 1 kHz or 10 kHz ±1 |
| Loop power output | 24 V ±10% |
| Display count | 20000 |
| Power | 1.2 V x 6 AA rechargeable battery |
| Product size | 7.68 in x 3.74 in x 2.28 in (195 mm x 95 mm x 58 mm) |
| Product net Weight | 1.43 lb (650 g) |
