Overview

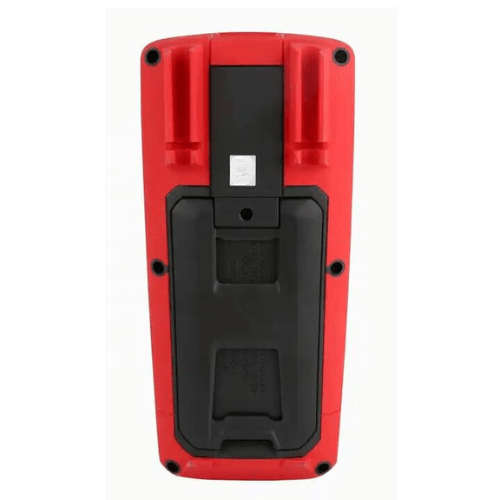

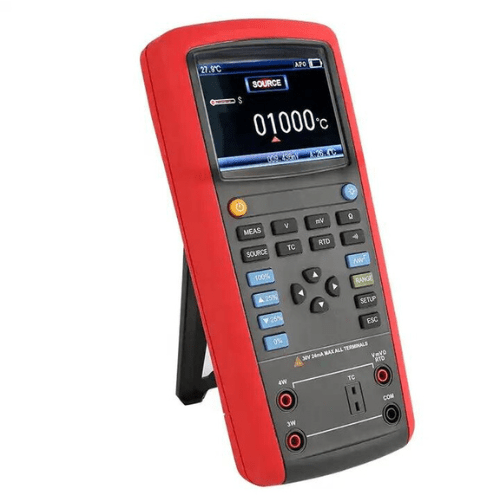

Enviro Testers multifunction temperature process calibrator is powerful temperature calibrator that sources and measures thermocouples, RTDs, voltage, and resistance. It can be used to test and calibrate different types of temperature instruments. This device is suitable for testing input or output temperature terminals such as sensors and transmitters.
Technical Specifications
| DC voltage | 50 mV , 500 mV , 30 V |
| Resistance | 500 Ω, 5000 Ω |
| RTDs | Pt100, Pt200, Pt500, Pt1000, Cu10, Cu50, Cu100, Pt100-392, Pt100-JIS, Ni120 |
| DC voltage | 100 mV , 1000 mV , 10 V |
| DC current | 20 mA, 20 mA (SIM) |
| Resistance | 400 Ω, 4000 Ω |
| RTDs | Pt100-385, Pt100-392, Pt100-JIS, Pt200-385, P500-385, Pt1000-385, Cu10, Cu50, Cu100, Ni120 |
| Display count | 20000 |
| Power | 1.2 V x 6 AA rechargeable battery |
| Operation temperature | 55 °F to 131 °F (-10 °C to 55 °C) |
| Product size | 7.67 in x 3.74 in x 2.28 in (195 mm x 95 mm x 58 mm) |
| Product net weight | 1.43 lb (650 g) |
