Overview

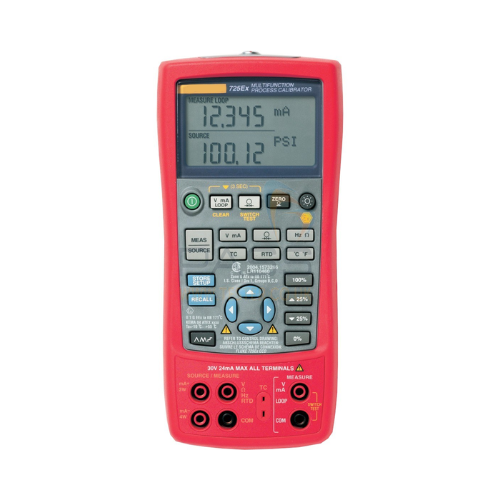

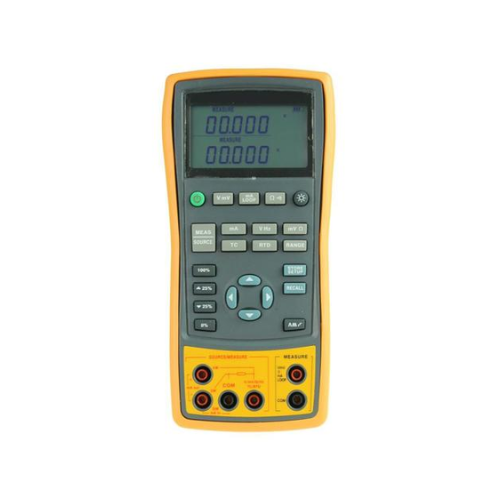

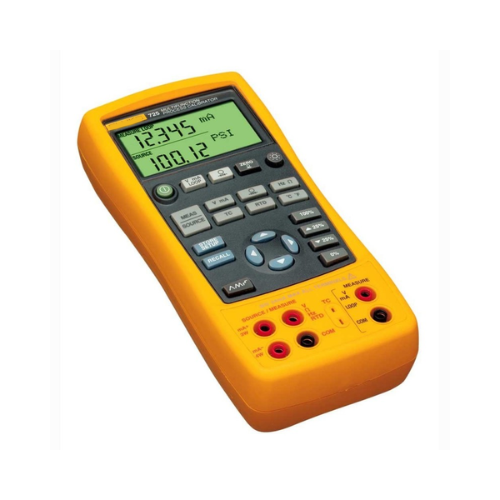

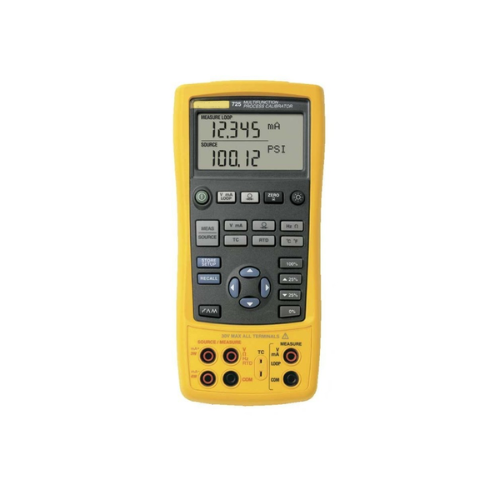

Enviro Testers multifunctional process calibration is a handheld, battery-powered instrument that measures and sources a variety of parameters. It can be widely applied in industrial fields and laboratories. The summary functions of the multi- function process EDEKA TC-200 multi-function process calibrator are shown in Table21. In addition to these functions, the EDEKA TC-200 multi-function process calibrator.
Features
- Counting pulse function
- Calibration functions
- Auto ramping and auto stepping
- Manual and automatic cold junction compensating
- Clear function
- Temperature unit switching
- Auto flashing jacks
- Battery gauge
Technical Specifications
| V DC | 0 V to 30 V 0 V to 20 V 0 V to 10 V |
| mV DC | 0 mV to 100 mV |
| mA DC | 0 mA to 24 mA |
| Current loop | 0 mA to 24 mA |
| Transmitter signal | 0 mA to 24 mA |
| Counting pulse | 0 to 99999 |
| Frequency | 1 kHz to 10 kHz 1 kHz to 5 kHz |
| Resistance | 0 Ω to 3200 Ω 15 Ω to 3200 Ω |
| Resistance temperature Detector | Cu 50 Pt 100 (385) |
