Overview

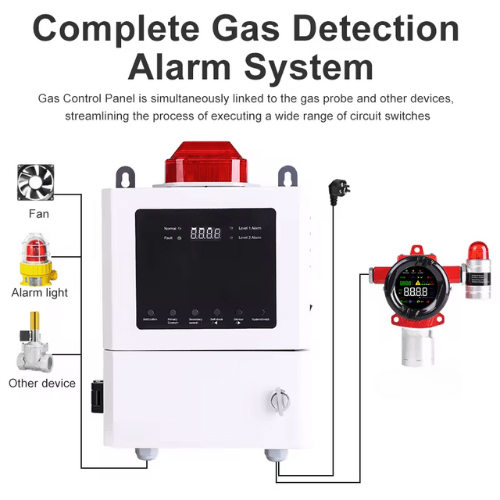

Enviro Testers NH3 ammonia gas leak detector is applicable to II-level explosion-proof environment. Real-time detection of toxic, harmful, flammable and other gases. The concentration is converted into an electrical signal and transmitted to the monitoring equipment. If the concentration exceeds the set safety value, an alarm will be issued to remind the user to deal with or evacuate quickly. Main Features The detector working with gas controller can be used to detect gas in refinery, LPG station, chemical plant, boiler room, painting plant and other places where NH3 gas exists.
Technical Specifications
| Applicable Gas | Ammonia Gas |
| Detection Principle | Electrochemical |
| Detection Range | 0 % VOL to 30 % VOL |
| Indication Error | 土 5 % FS |
| Sampling Mode | Diffusion type |
| Service Life | 2 to 3 years (depend on environment) |
| Power Specification | 24 V |
| Output | 4 mA to 20mA、RS485、relay |
| Response Time | ≤ 30 s |
| Humidity | (25 % RH to 75 % RH) |
| Display Screen | LCD screen |
| Display Content | Gas concentration, menu, alarm status |

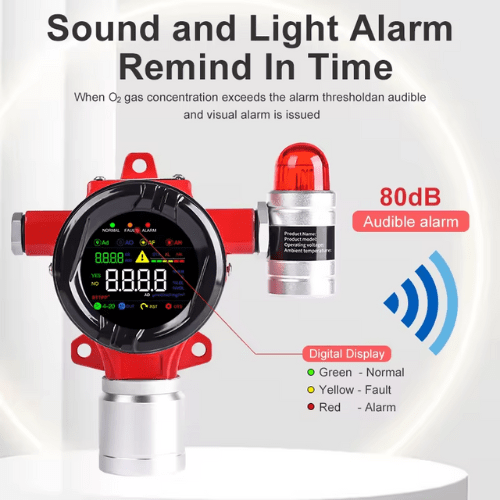

| Alarm Mode | Acousto-optic alarm+ vibration alarm |

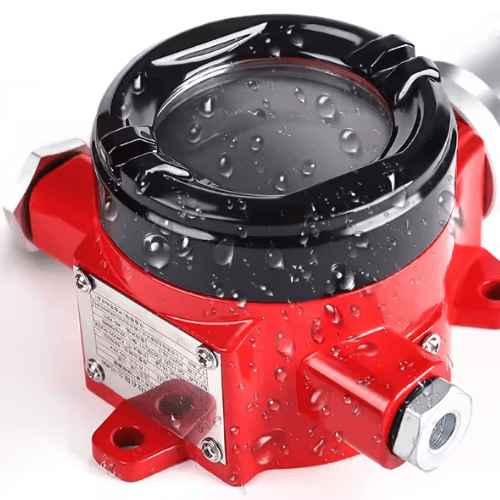

| Protection Level | IP66、Ex d IIC T6 Gb |
| Temperature | 14 °F to 122 °F (-20 ℃ to +50 ℃) |
| Product Size | 7.28 in x 5.63 in x 3.23 in (185 mm x 143 mm x 82 mm) |
| Product Weight | 3.31 lb (1.5 kg) |
