Overview

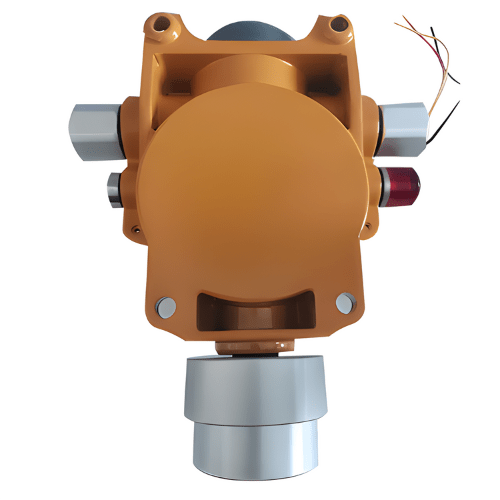

Enviro Testers NH3 fixed gas leak detector is a high-performance fixed gas detector developed by our company, which is used for long-term continuous monitoring of combustible toxic and harmful gases in the air. It can continuous detect max 4 kinds of gas and display real timely, detect gas concentration by Natural diffusion. The standard 4 gas are CO O2 H2S and combustible gas, other gas can be combined flexibly.
Features
- Detection accuracy, range adjustable, 4 mA to 20 mA protocol and 485 protocol
- Long life, high sensitivity, low drift, stable and reliable work
- Sensor fault self-check, two-level concentration alarm
- LCD gas concentration digital display and working state display
- With temperature compensation, automatic zero-point correction function
- Infrared remote-control mode
Technical Specifications
| Battery | 24 V DC ± 10% |
| Humidity Working | 15% RH to 90% RH (No condensation) |
| Detection Principle | Catalytic or electrochemical or Infrared |
| Alarm Method | Light or sound |
| Sampling | Natural diffusion |
| Resolution | 1% lel 1 ppm or 0.1 ppm |
| Measurable Gas | Flammable, toxic, harmful gas |
| Applications | Chemical plants, mines, oil refineries, pharmaceutical plants, metallurgical plants, gas stations, liquefied gas stations, brewing, hotel kitchens |
| Measure Range And Resolution | EX: 0% to 100% lel 1% lel O2: 0% to 30% vol 0.1% vol CO: 0 ppm to 2000 ppm 1 ppm or 0 ppm to 1000 ppm 1 ppm H2S: 0 ppm to 200 ppm 1 ppm |
| Feature | Support a variety of gas customization (customized diversified products according to different industrial and mining) |
| Output Signal | RS485 digital or Two bus wire |
| Explosion-Proof Number | CE10 1084 |
| Explosion-Proof Marks | Exd II CT6 |
| Control Signal | Switch output, the maximum load 250 V AC 3 A (optional) |
| Temperature Working | -4 °F to 122 °F (- 20 °C to 50 °C) |
| Product Size | 8.66 in x 7.48 in x 3.54 in (220 mm x 190 mm x 90 mm) |
