Overview

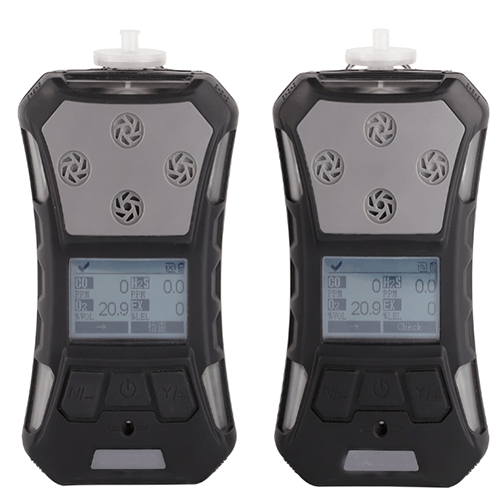

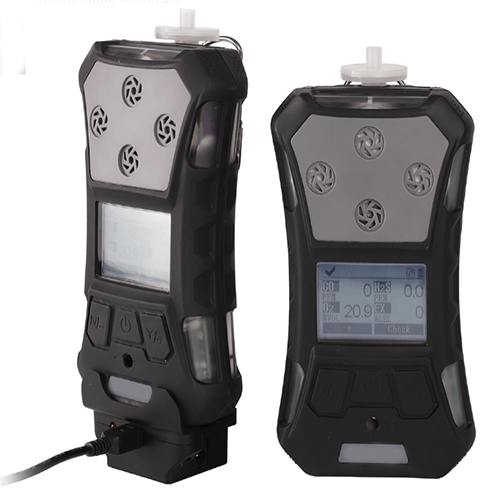

Enviro Testers NH3 gas meter is a portable gas detector which can show real-time data and send alarms when the reading reaches the set value. The device is a suction and diffusion dual-purpose instrument. When the pump fails to work, it can automatically switch to the diffusion sampling mode. It also with back clip so the user can conveniently carry it. It is with the data log function. Which is not only able to store data on a device but also transfer data to PC by USB wire. It is IECEX, ATEX explosion-proof certified, and its protection level reaches IP67.
Features
- Durable and sturdy, resistant to falling
- The main body can effectively resist a 3-meter drop
- Protection level reaches IP67
- Through EMC anti-static interference testing
- Explosion-proof circuit design, safe and reliable
- Multiple security protection
- Simultaneous measurement of multiple gases, multiple numerical displays
- Can simultaneously detect 1 gas to 5 gases
- Real-time value, TWA, STEL, MAX, MIN multiple numerical displays
- Powerful function, more user-friendly operation
- The screen can automatically flip 180 degrees
- Pump suction and diffusion dual use
- Equipped with a water trap filter, filtering water, oil, and dust impurities
- Optional Bluetooth function for real-time data transmission to mobile or PC devices
- Optional mobile app function for viewing real-time data on the phone
- Unique modifiable ID identification function
Technical Specifications
| Sampling Method | Pump suction and diffusion dual-use type |
| Gas Type | NH3 |
| Measure Range | 0 to 100, 200, 500, 1000 PPM |
| Sensor Principle | Electrochemical principles |
| Resolution | 0.01 PPM; 1 PPM |
| Response Time | ≤ 30 seconds |
| Accuracy | ≤ ± 2% FS |
| Automatically Test And Calibrate After Power-ON | Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Measure Unit | PPM and mg/m³ can be switched |
| Display | Monochrome graphics (160 x 96), screen can be automatically flipped |
| Backlight | The backlight time can be manually set, and will be turned on automatically when an alarm is issued |
| Data Record | Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported |
| Alarm | 95 dB buzzer 11.8 in (30 cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man, down alarm, with early warning and optional real-time remote Bluetooth notification function |
| Battery | 3.7 V rechargeable lithium battery, battery capacity 2200 mA |
| Working Hours | More than 15 hours in continuous pumping mode |
| Charger | Travel charger with DC interface, charging time ≥ 4 hours |
| Explosion-Proof Grade | IECEX or ATEX (II IG Ex Ia IIC T4 CNEX: Ex Ia IIC T4 Ga |
| Protection Grade | IP67 |
| Humidity | 0% RH to 90% RH (no condensation) |
| Environmental Pressure | 86 Kpa to 106 Kpa |
| Working Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Size | 6.18 in x 3.32 in x 2.33 in (157 mm x 84.5 mm x 59.5 mm) |
| Weight | 0.79 lb (0.36 Kg) |
