Overview

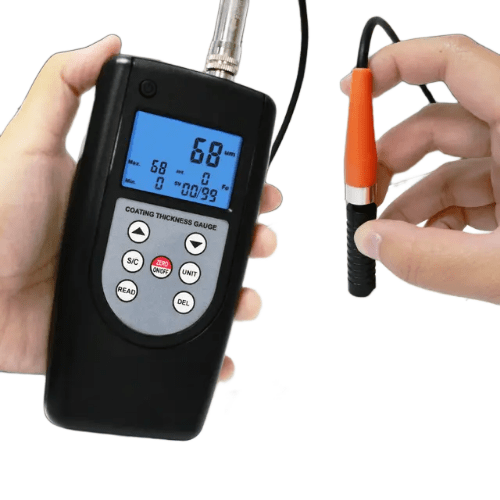

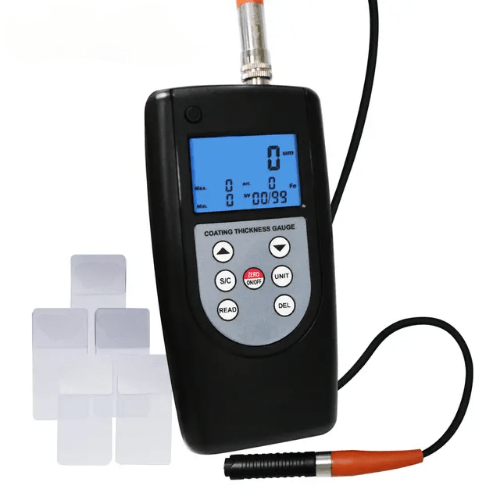

Enviro Testers non-conductive coating thickness meter is a kind of portable testing instrument, can take fast, intact, precise measurement of coating thickness. It can be used in both engineering field, and laboratories, as an essential instrument in material protection industry. The F Type Measure the thickness of non-magnetic materials on magnetic materials. The NF Type Measure the thickness of non-conductive coatings on non- magnetic metals.
Features
- Can store the new data in 99 groups
- Calculates and displays a statistical analysis of readings
- Magnetic induction and eddy current, measuring methods
- Metric / imperial system selectable
- Auto memory of calibration value, auto substrate recognition
- Single and Continuous measurement mode
- Low battery indicator
- Manual or automatic power off
Technical Specifications

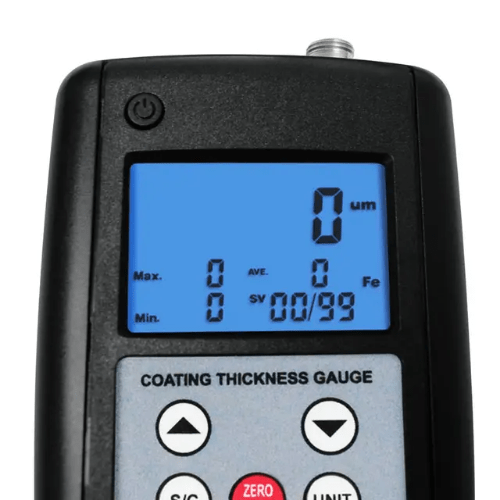

| Display | 4 digits LCD, backlit |
| Range | 0 µm to 2000 µm / 0 mil to 80 mil |
| Accuracy | ±1% n to 3% n or ±2.5 µm or 0.1 mil |
| Resolution | 0.1 µm / 1 µm |
| Min.Measuring Area | 0.23 in (6 mm) |
| Data memory | 99 Groups |
| Min.Sample Thickness | 0.01 in (0.3 mm) |
| Power Supply | 4 x 1.5 V AAA |
| Temperature | 32 °F to 104 °F (0 ºC to 40 ºC) |
| Humidity | 10% RH to 90% RH |
| Battery Dimensions | 5.5 in x 2.8 in x 1.3 in (140 mm x 72 mm x 34 mm) |
| Weight | 0.47 lb (215 g) |
