Overview

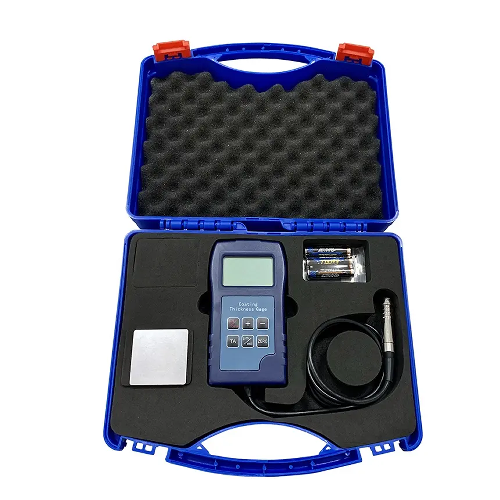

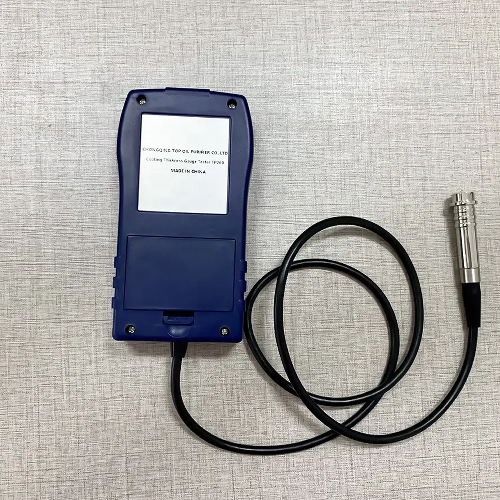

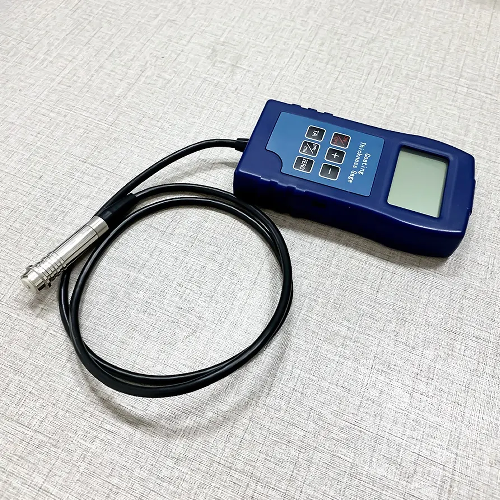

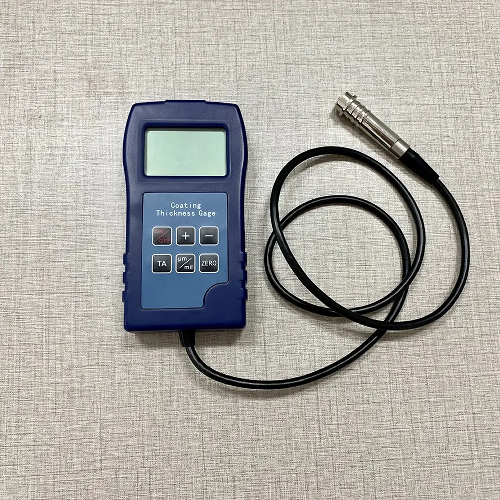

Enviro Testers non-magnetic thickness gauge tester is a professional non-destructive testing instrument for measuring the thickness of coatings on the surface of magnetic metal materials. It adopts the magnetic thickness measurement method, which can non-destructively measure the thickness of non-magnetic coatings (e.g., galvanized, chrome, copper, indium, enamel, rubber, powder, paint, electrophoresis, enamel, anti-corrosion coating, paint, Asphalt, FRP, etc.) on magnetic metal base (e.g., steel, iron).
Features
- Simple operation, fast test speed, good sensitivity and high measurement accuracy
- Large-capacity storage for more than 800 measurement data
- There are two test methods: continuous (CONTINUE) and single (SINGLE) measurement methods
- Four statistical functions: maximum (MAX), minimum (MIN), average (MEA), number of measurements
- Connect to a computer for communication, read and store data for saving or printing
- Two calibration methods are available: zero calibration and two-point calibration
- The operation process has a beep sound mark (single measurement method)
- Automatic identification of iron-based and non-ferrous substrates
- Metric conversion to μm/Mil
- Backlight display mode, low voltage indication
- Manual / automatic shutdown function
Technical Specification
| Measuring range | 0 μm to 1250 μm/ 3000 μm (If the measuring range exceeds 1250 μm, please inform us in advance to customize) |
| Use environment & temperature | 32 °F to 122 °F (0 °C to 50 °C), humidity: 20% RH to 90% RH, use in environments without strong magnetic fields. |
| The thinnest base | 0.15 in (0.4 mm) |
| Measurement accuracy | ± (1% H to 3% H) + 1.5 μm |
| Resolution | 0.1 μm / 1 μm (0.1 μm below 100 μm, 1 μm above 100 μm) |
| Minimum base area | 0.39 in x 0.39 in (10 mm x 10 mm) |
| Minimum curvature | Convex: 0.19 in (5 mm) concave: 0.15 in (25 mm) |
| Dimensions | 1.18 in x 2.75 in x 0.94 in (30 mm x 70 mm x 24 mm) |
| Power supply | Three pcs of 7 alkaline battery |
| Weight | 0.00 Ib (100 g) |
