Overview

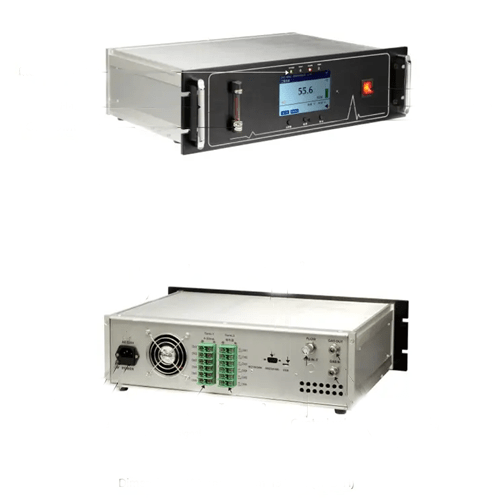

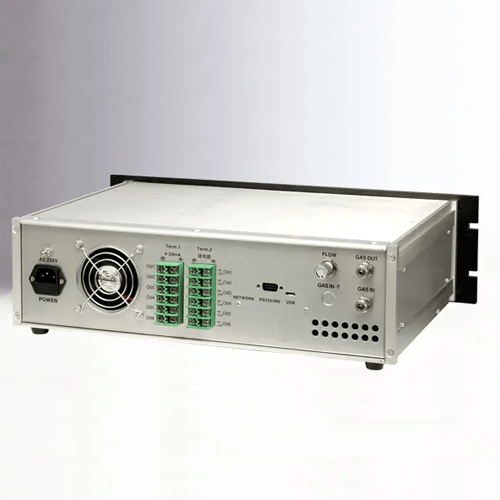

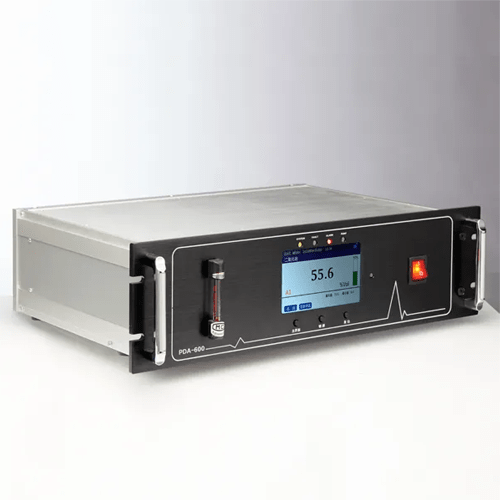

Enviro Testers Online CO Analyzer is an intelligent high-performance analytical instrument that mainly adopts the non-dispersive infrared (NDIR) measurement principle and can continuously monitor multiple component gases on-line. The analyzer is equipped with a 5-inch touch TFT-LCD large color LCD control screen, the overall menu structure is reasonable, the easy-to-understand UI color icon menu, intuitive and friendly user-operated touch interface, all status displays, measured values and alarm values are simulated and provided digitally. The standard 19-inch chassis, rack-mounted, desktop, and wall-mounted are optional. The built-in filter and regulating valve are not disassembled and replaced on site. It is suitable for on-line monitoring of industrial sites and laboratories 24 hours a day.
Features
- User-friendly screen
- On-site filter replacement
- Flexible chassis mounting
- Detailed measurement display
- High-resolution microprocessor
- Real-time ambient temperature display
- Automatic accuracy calibration
- Easy unit switching
- Real-time data transmission
- Automatic layout by sensor number
- Wireless transmission options
- USB and RS232 support
Technical Specifications
| Detection Gas | Carbon monoxide gas (CO) in air |
| Working Principle | Electrochemical, infrared, TCD, PID, catalytic combustion(optional) |
| Detection Range | 0 to 1 ppm, 0 to 10 ppm, 0 to 50 ppm, 0 to 100 ppm, 0 to 200 ppm, 0 to 500 ppm, 0 to 1000 ppm, 0 to 2000 ppm, 0 to 5000 ppm, 0 to 10000ppm, 0 to 50000 ppm 0 to 100 % LEL 0 to 5 % VOL, 0 to 10 % VOL, 0 to 30 % VOL, 0 to 50 % VOL, 0 to 100 % VOL (optional) |
| Resolution | 0.01 ppm (0 to 100 ppm); 0.1 ppm (0 to 1000 ppm); 1 ppm (>1000 ppm); 0.1% LEL; 0.01% VOL |
| Sampling Method | ①Circulation type——online continuous detection, circulation detection method ②Pump suction type-equipped with built-in or external air pump to realize pump-suction detection method (air pump is optional) |
| Accuracy | ≤ ±3 % F.S. |
| Repeatability | ≤ ±1 % |
| Zero Drift | ≤ ±1 % (F.S./year) |
| Response Time | ≤25 s |
| Recovery Time | ≤30 s |
| Preheat Time | 120 s |
| Power Supply | 220V AC ± 10%；50 Hz ± 5 Hz |
| Fuse | Rated current: 10 A Size: 0.19 in x 0.78 in (5 mm x 20 mm) |
| Intake Air Flow | 0.5 to 0.8 L/min (flow fluctuation ≤0.02 L/min) |
| Body Material | Aluminum, SPCC |
| Alarm Method | Alarm sound <90 dB |
| Alarm Point Setting | A1, A2, TWA, and STEL alarm values can be set independently |
| Display | 5-inch TFT touch color LCD screen, 800 × 480 dot matrix LCD |
| Operating Method | Touch screen operation + button auxiliary operation |
| Black Light | Manual, automatic when alarm |
| Direct Reading | Measured value, ambient temperature and humidity, date and time, maximum and minimum |
| Data Record | Sensors 1-6: Automated data storage, optional micro-TF card |
| Data Download | USB or RS232 interface download |
| Data Print | Mini portable printer (optional) |
| Calibration | Software (levels 2-3) with one-key zero adjustment |
| Calibration Standard Gas Requirements | Zero-point standard gas: 99.999 % N2 (nitrogen) Full scale calibration gas: 85% to 110% of the measured gas’s full scale Third point of calibration gas: 35% to 75% of the measured gas’s full range |
| Explosion Proof | ExdⅡCT4 Ga (Intrinsically Safe) |
| Protection Class | IP42 |
| Working Pressure | 86 KPa to 106 KPa |
| Working Humidity | 10 to 95% RH (Non-condensing) |
| Working Temperature | -40 °F to 158 °F (-40 °C to 70 °C) (up to 1472 °F (800 °C) with high-temperature sample handles) |
| Size | 18.89 in x 12.20 in x 5.11 in (480 mm × 310 mm × 130 mm) |
| Weight | 15.43 lb (7 Kg) |
