Overview

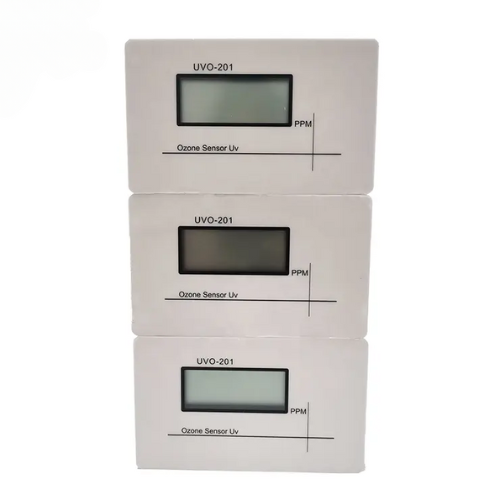

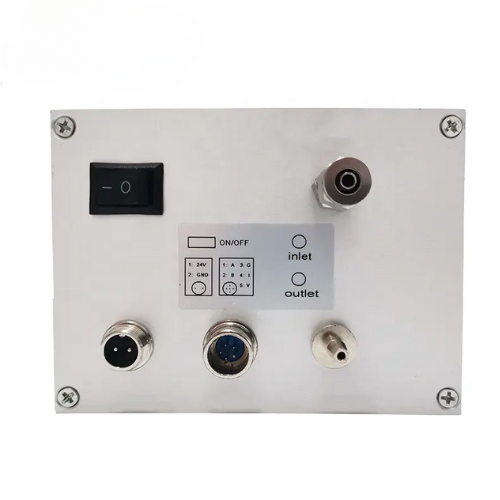

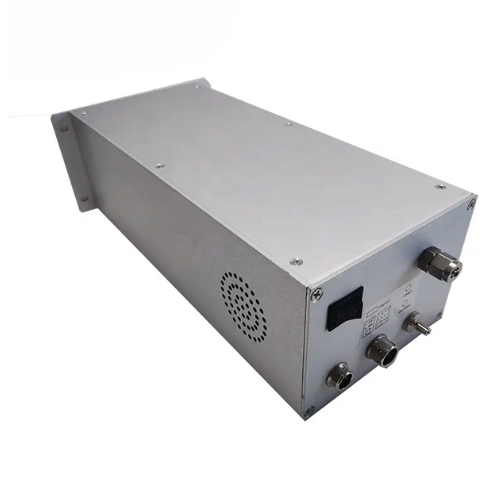

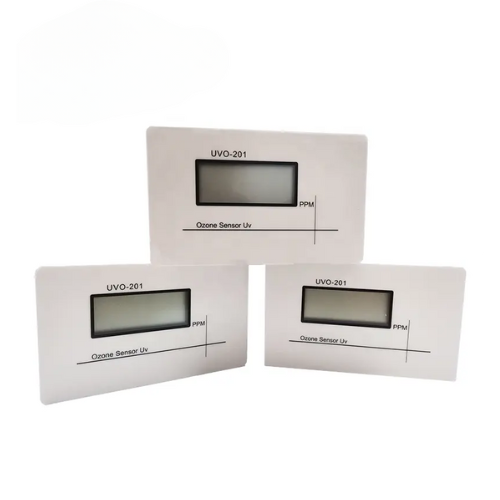

Enviro Testers Ozone Online Generator is used to measure the concentration of ozone, the detection data is displayed directly through the digital tube, and you can read the analog signal corresponding to the measurement data through the analog signal output terminal at the back of the instrument. The instrument adopts an imported ultraviolet light source with a long service life and a high stability coefficient.
Features
- Over-range measurement, up to 500 ppm
- Multiple signal outputs for secondary product development
- Measurement data is displayed directly, no need to operate
- Lightweight, stable performance, high measurement accuracy
Technical Specifications
| Measuring range | 0 ppm to 5ppm |
| Accuracy | 0.01ppm |
| Measuring time | 10s |
| Power-on warm-up time | 30min |
| Ambient Temperature | 32 to 104 (0 ℃ to 40℃) |
| Gas flow rate | 1.5L/min |
| Measurement mode | automatic |
| Power supply | DC24V 10 mA to 400mA |
| Overall Dimension | 11.02 in x 4.72 in x 4.33 in (280 mm x 120 mm x 110mm) |
| Weight | 7.72 lb (3.5kg) |
