Overview

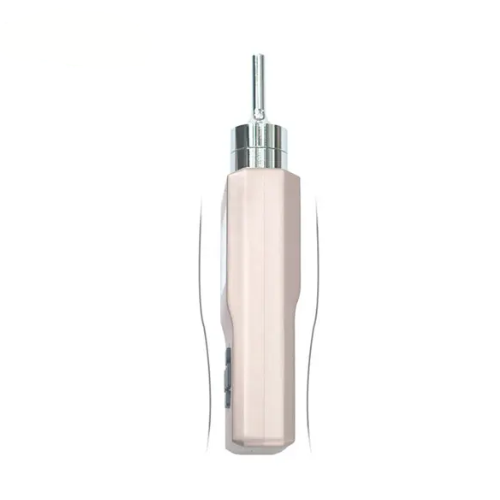

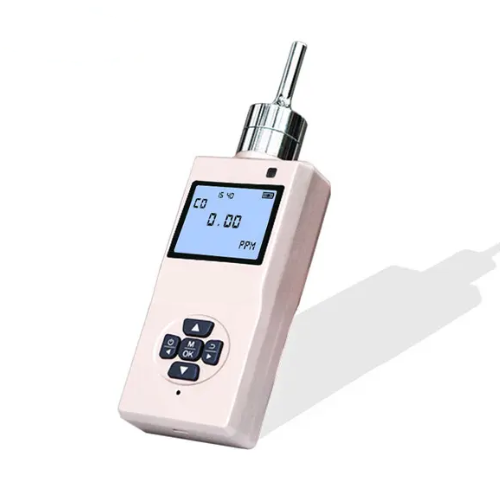

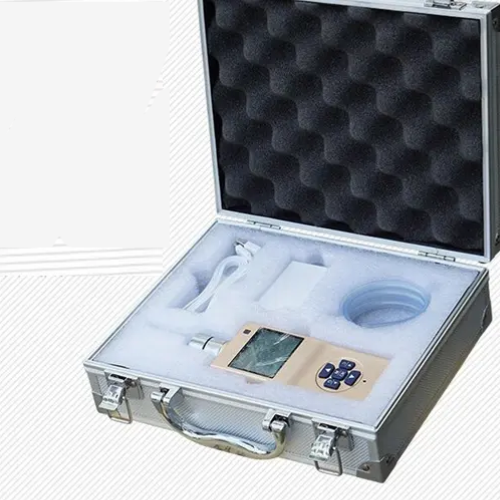

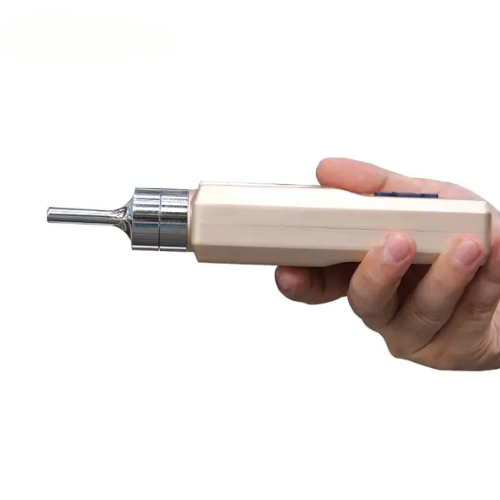

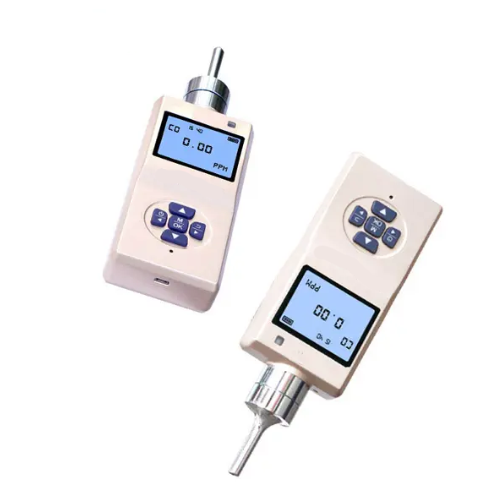

Enviro Testers Ozone Pump suction designed with the inner pump and the famous brand sensors, with stable performance and high accuracy. Used to detect the single gas concentration for the Combustible gas, Toxic gas, Carbon Dioxide, Oxygen, TVOC, etc. It can directly display the gas concentration data on the screen, the data also could be exported to the computer by USB cable. For the portable O3 gas detector, the common applications are gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc., where need to inspect the O3 gas concentration
Features
- 24-bit ADC acquisition chip, so with the high accuracy
- All English operation menu and easy operation
- Unit data available for ppb, ppm and mg/m3
- Explosion proof grade is Ex IB IIC T4 Gb
Technical Specification
| Measuring range | 0 PPM to 1 PPM, 50 PPM, 100 PPM, 1000 PPM, 5000 PPM,10000 PPM,1000 ppb or Customized. |
| Working principle | Electrochemical sensor |
| Resolution | 0.001 ppm, 0.01 ppm, 1 ppm or 1 ppb |
| Precision | ±≤3% FS or Customized |
| Repeatability | ≤±1% |
| Zero drift | ≤±1% (F.S/year) |
| Sampling mode | Pump-suction sampling (Flow rate of 300 ml/minute) |
| Data storage | Can record 300000 group of measuring data |
| Response time | T 90≤20 s |
| Recovery time | ≤20 s |
| Pre-heating time | ≤60 s |
| Display | LCD dot matrix display of the Gas type, gas concentration unit, gas concentration data, time, battery status, data storage status; |
| Concentration unit | PPM, mg/m3, ppb |
| Working environment | Working temperature: -4 ℉ to 140 ℉ (-20 ℃ to 60 ℃)Working humidity: 10% RH to 95% RH (non-condensing)Working pressure: 12.47 PSI to 15.37 PSI (86 Kpa to 106 Kpa) |
| Explosion-Proof grade | Ex IB IIC T4 Gb |
| Protection grade | IP 66 |
| Alarm mode | Audible, visual |
| Shell material | Metal |
| Power supply | 3.7 V DC, 2800 mAh, Rechargeable lithium batteryDC 5V USB charger |
| Charge time | ≤6 h |
| Working time | ≥24 h |
| Dimensions | 5.31 in x 2.55 in x 1.37 in (135 mm x 65 mm x 35 mm) |
| Weight | 1.10 lb (500 g) |
