Overview

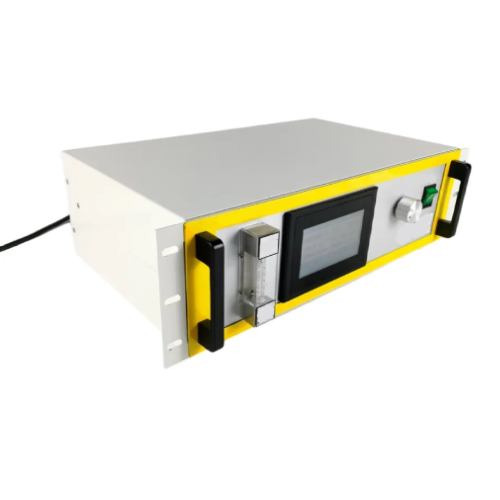

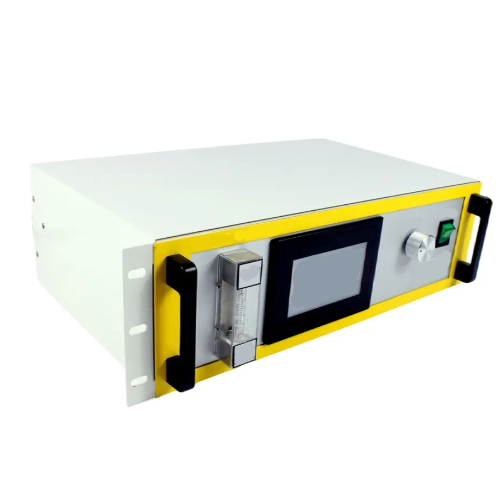

Enviro Testers Ozone Tail Gas Detector has a touch screen operation interface, which shows the real-time ozone concentration. And the touch screen is also with pressure & temperature compensation display. For the high concentration (g/Nm3) range, it has the function of flow input, which can display the output of the ozone generator in real time. The core component adopts long-life UV light system with the high light transmittance quartz to prevent zero drifting from affecting the detection accuracy. It is no need to close ozone inputting when zeroing to ensure the equipment can run continuously 24 h.
Features
- Fast response speed
- High measurement accuracy
- Good stability and repeatability
Technical Specification
| Range | 0 g/nm to 200 g/nm,0 g/nm to 100 g/nm,0 g/nm to 50 g/nm | 0 PPM to 100 PPM,0 PPM to 1000 PPM |
| Display unit: | g/Nm3 mg/NL %WT ppm mg/Nm3 | |
| Sampling Method: | active pressure sampling pumping sampling | |
| Content Interface: | ozone concentration temperature compensation | |
| pressure compensation Mass flow & output display | ||
| Light Source Life: | About 10000 h | |
| Display Interface: | 109.22 mm (4.3 in) touch screen operation interface | |
| Auxiliary Function: | concentration temperature & pressure compensation | |
| Sampling Flow: | 0.5 L/min to ±0.2 L/min | |
| Input Pressure: | <14.50 PSI (<0.1 MPa) | |
| Concentration Error: | < 0.3% FS | |
| Line Deviation: | < 0.3% FS | |
| Zero Drifting: | <±0.3% FS | |
| Response Time: | the signal is 0.03S | |
| Ambient Temperature: | -4 ℉ to 122 ℉ (-20 ℃ to 50 ℃) | |
| Sampling Caliber of Series Connection: | Bypass samplingΦ6 (6 mm x 4 mm fast twisting interface) | |
| Communication Mode: | RS 485 | |
| Output Mode: | 4 mA to 20 mA | |
| Relay Signal: | High alarm, Low alarm | |
| Power Supply: | AC 110 V to 220 V | |
| Standard configuration: | Antiseptic flowmeter filter Ozone tail gas destroyer sampling pump |
|
| Dimension: | 9.05 in x 12.99 in x 5.90 in (230 mm × 330 mm × 150 mm) | |
