Overview

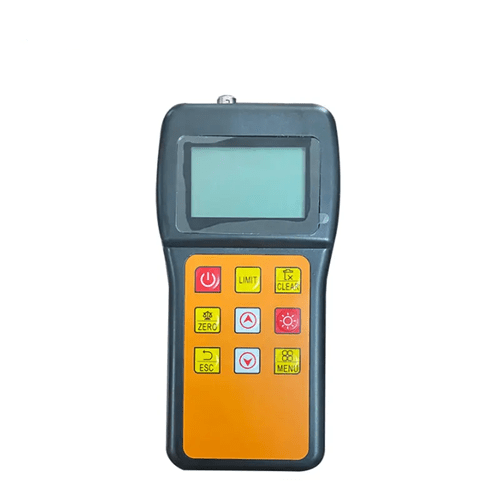

Enviro Testers Paint Gauge Coating Thickness Meter is a type of portable measuring gauge, capable of measuring rapidly, nondestructively, and precisely the thickness of coating and cladding material. It is suitable for on-site as well as for laboratory uses. Via the use of different probes, many sorts of measuring can be satisfied by the gauge. It can be applied comprehensively to manufacturing, metal processing and chemical professions as well as to commercial inspection. It is indispensable for the major of materials protection.
Technical Specifications
| Working Principle | Magnetic induction and eddy current |
| Measurement Accuracy | F1 (± 1 to 2) % H + 1), F10 (± (1 to 3) % H +1), N1(± (1 to 2) % H + 1) |
| Measuring Range | F1(0 um to 1250 um), F10 (0 um to 10000 um), N1(0 um to 1250 um) |
| Minimum Curvature | F1 0.11 in (3 mm), F10 0.39 in (10 mm), N1 0.15 in (4 mm), F400 0.04 in (1 mm) |
| Minimum Area | F1 (7), F10 (40), N1 (5), F400 (3) |
| Measurement Method | Continuous measurement method, single measurement method |
| Statistics Function | Mean, Large, Small, Tests, Standard Deviation |
| Calibration Method | Single point calibration, two-point calibration, and five-point basic calibration method to correct the system error of the probe |
| Storage Function | Can store 495 measured values, with delete function: delete single suspicious data appearing in the measurement, or delete all data in the storage area for new measurement |
| Alarm System | Limits can be set automatic alarming for measured values outside the limits; with power under voltage indication function; beep prompts during operation; with error prompt function, error prompts can be displayed on screen or by beeps |
| Shutdown Method | Manual shutdown mode and automatic shutdown mode |
| Use Environment | 32 °F to 104 °F (0 ºC to 40 ºC) or 20 % RH to 90 % RH Magnetic field free environment |
| Power Supply | Tow AA batteries |

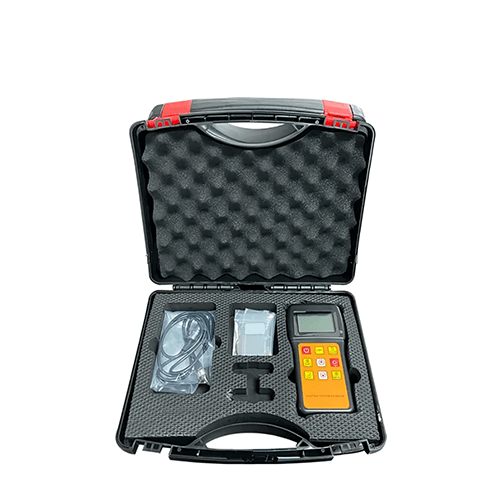

| The Standard Configuration | Main unit 1 set or probe 1 set or standard piece (5 pieces) or iron or aluminum base 1 piece or 5 AA battery 2 sections or manual certificate warranty card 1 set |
