Overview

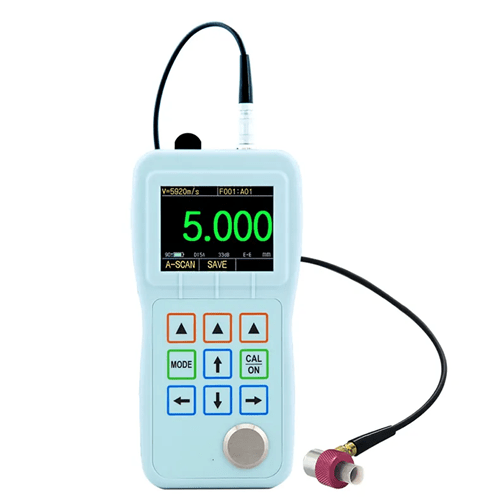

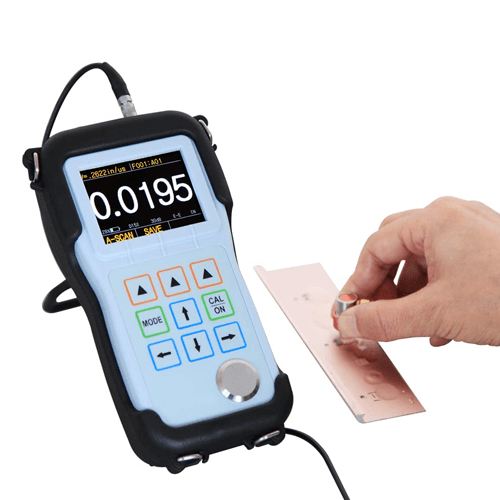

Enviro Testers Paint Iron Underwater Thickness Gauge uses multiple echoes to Improve Precision, with Resolution up 0 In and Measurement Lower Limit as Low as 0.01 In. In addition, it provides A and B scanning functions. Through echo display, users can be helped to better control measurement, so that the thickness measurement range is wider, the measurement value is more accurate, and errors related to materials in measurement can be avoided. This instrument can be widely used for measuring the thickness of metal materials. For thin part measurement and high precision measurement, more see its advantages. In addition, the instrument can penetrate thin coatings and paint layers, and can be used for measuring ultra-thin walls with paint layers such as fire extinguishers
Features
- Ultrasonic high precision, 0.001mm resolution
- Designed for thin parts, measuring lower limit is 2 mm
- 4-In QVGA (320 x 240 dot matrix) color OLED screen
- Live Color A-Scan and Time-based B-Scan
- Unique Multiple Verification Mode
Technical Specifications
| Measuring Range | 0.008 In to 1.06 In (0.2 mm to 27 mm) |
| Penetration Coating Function | YES |
| Display | QVGA 12.59 in to 9.44 in (320 mm × 240 mm) color OLED screen with contrast ratio of 10000:1 |
| Working principle | Ultrasonic Measurement Principle Using Single Crystal Delay Probe |
| I-E | Pulse-echo method, measuring range 0.06 In to 1.06 In (1.5 mm to 27 mm) |
| E-E | Echo-echo method, measuring range 0.007 In to 0.5 In (0.2 mm to 13.5 mm) |
| ME-E | Multiple wave calibration method, measuring range 0.008 In to 0.4 In (0.2 mm to 9 mm – 9 mm) |
| AUTO | Automatic mode measurement range 0.0098 In to 1.06 In (0.25 mm to 27 mm) |
| Large Thickness Reading | General display view of thickness values |
| Difference/Reduction Rate | Displays the difference between the actual thickness and the preset thickness and the thinning percentage |
| Measurement Resolution | 0.0001 In or 0.001 In or 0.01 In) |
| Unit | Millimeters or inches |
| Gain | Real-time adjustable |
| The Measurement Update Rate | 4HZ, 8HZ and 16HZ per second are optional. |
| The Sound Speed Range Of The Material | 500 to 9999 m/s, 0.0179 to 0.3937 In/us |
| Alarm Function | When the measured value is greater than the preset upper limit or lower limit, dynamically changing the thickness reading color alarm |
| Language | Chinese, English, Japanese, German and French are available |
| Power Supply | Two AA batteries |
| Operating Time | Two AA batteries for more than 35 hours |
| Automatically Shut Down | Optional 5, 10, 20 minutes after no operation automatically shut down, or only manually shut down |
| Working Temperature | 14 °F to 122 °F (-10 ℃ to +50 ℃), with special requirements up to -4 °F (-20 ℃) |
| Size | 6.02 In x 2.9 In x 1.45 In (153 mm x 76 mm x 37mm) |
| Weight | 0.62 Ib (280g) Including Battery |
