Overview

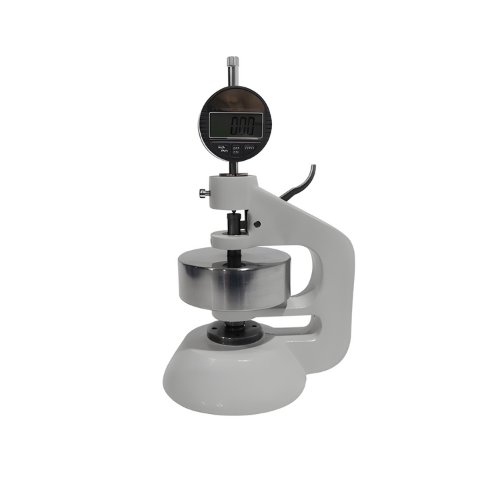

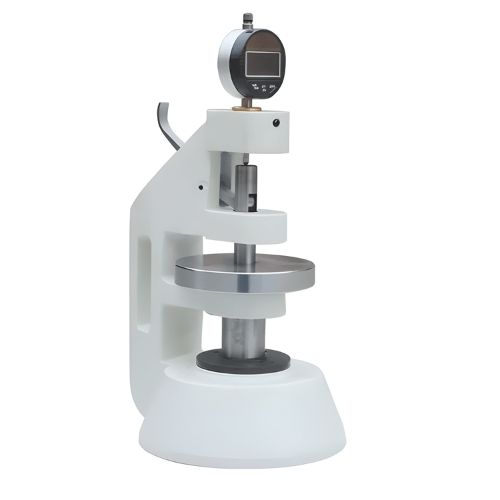

Enviro Testers paper cardboard thickness Gauge is widely used for measuring the thicknesses of paper, paperboard, and corrugated fibreboards according to the principle of a contact measurement method, and its technical parameters meet related national standards. It is divided into a pointer type and a digital display type according to different display modes.
Features
- Manual-based, compact, strong and durable.
- Analog and digital measuring meter have two options.
- The measuring range, the test widely used.
Technical Specifications
| Paper Thickness Test Range | 0 in to 0.01 in (0 mm to 3 mm) |
| Resolution | 0.003 in (0.01 mm) |
| Paper Thickness Test Area | 200 ± 5 mm2 |
| Paper Thickness Contact Pressure | 100 ± 1.45 psi (10 kPa) |
| Paperboard Thickness Test Range | 0 in to 0.70 in (0 mm to 18 mm) |
| Paperboard Thickness Test Area | 1000±20 mm2 |
| Paperboard Thickness Contact Pressure | 20± 0.07 psi (0.5 kPa) |
| Resolution | Optional |
