Overview

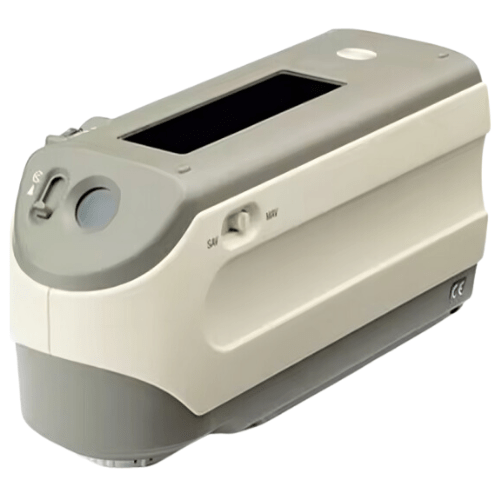

Enviro Testers Portable Colorimeter – also known as portable spectrophotometer color meter, can directly read the data, but also can be connected to the computer, with software. Small size, easy to carry, high accuracy, moderate price. Applicable to plastics, coatings, electrical appliances, chemical products, cosmetics, printing, building materials, fibers and other fields.
Features
- Good reliability and durability
- The world’s first portable spectrophotometer
- Can be measured from various angles.
- The most perfect color communication interface
- SC1and SCE can be measured simultaneously
Technical Specifications
| Application | Widely |
| Power Supply | AC 220 V 50 HZ |
| Material | Stainless Steel |
| MOQ | 1PCS |
| Lighting/Receiving System | D/8 (Diffused illumination, received at 8°) scI (including specular reflected light)/SCE (excluding specular reflected light) Simultaneous measurement (CIE NO.15, ISO7724/1, ASTM E1164, DIN5033 TEIL7, JIS Z8722 Condition C) |
| Sensor | Silicon photodiode array (40 groups in two rows) |
| Spectroscopic Method | Planar folding grating |
| Integrating Sphere Size | Ф 52 mm |
| Measuring Wavelength Range | 36O NM to740 NM |
| Measured Wavelength Interval | 10 NM |
| Half-Wave Width | About 10 NM |
| Reflectance Measurement Range | 0 % to 175 %; Resolution: 001 % |
| Lighting Source | Pulse xenon lamp x 2 |
| Measuring Time | About 1.5 s |
| Measurement Interval | Ф 8 ΜΜ or Φ 11 ΜΜ |
| Standard Observer | 2 ° view Angle, 10 ° view Angle |
| Viewing Light Source | A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12 (two light sources can be selected at the same time for display) |
| Memory | 1,700 groups (SCI / SCE is one group of data) |
| Port | An RS to 232C serial port with an RJ45 port. Use the standard USB-serial port transfer cable IFtoA24 to implement USB 2.0 communication |
| Power Supply | No. 5 battery (x 4), special AC adapter |
| Operating Temperature And Humidity Range | 41 °F to 104 °F (5 °C to 40 °C). The relative humidity is lower than 80 % (35 °C) without conde |
| Storage Temperature And Humidity Range | 32 °F to 113 °F (0 °C to 45 °C). Relative humidity below 80 % (35 °C) without condensation |
| Size (Length × Width × Height) | 7.59 in × 2.71 in × 3.77 in (193 mm × 69 mm × 96 mm) |
| Weight | About 1.47 lb (670 g) (Including white correction plate, without battery) |
