Overview

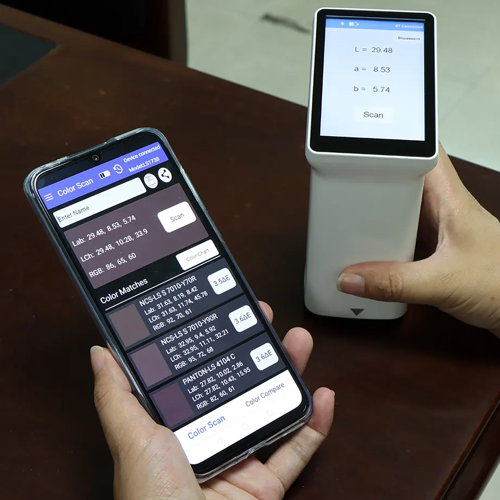

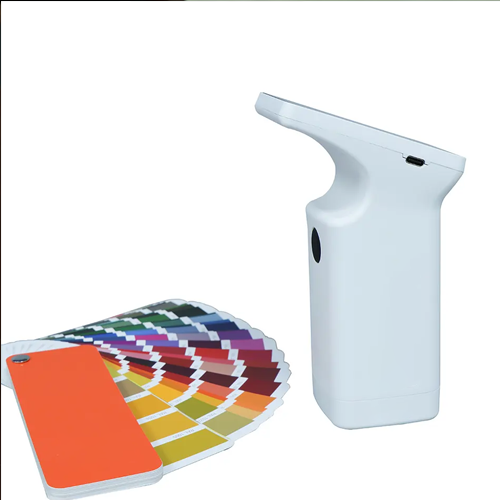

Enviro Testers portable colorimeter- large storage space with D or 8 ° (SCI) optical geometry design. It is equipped with a 3.5 inch IPS color capacitive touch screen, providing an excellent operating experience. It integrates multiple natural color charts and can quickly match the measured color to the closest color code.
Features
- Touch screen control, perfect viewing angle
- Portable color analyzer, easy to carry

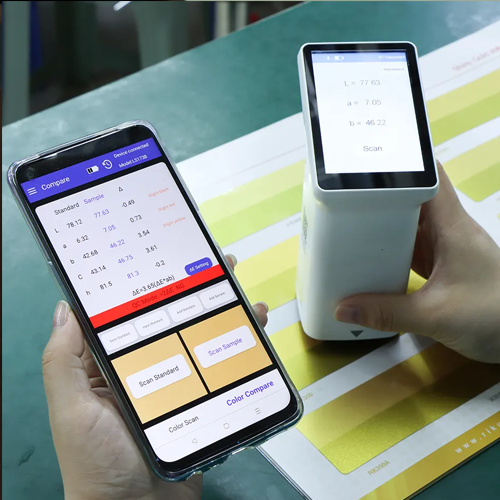

- Color measurement and color difference contrast function
- Built-in multiple electronic color charts
- A variety of color spaces and color difference formulas, highly matching industry
- Measuring locating plate to make the measurement more accurate
- The body is small and portable
- Large storage space
- Compensation optical path technology
- Whiteboard calibration, simple operation
Technical Specifications
| Illumination Geometry | D or 8, specular component includes (SCI) |
| Illumination Light Source | Full spectrum LED light source |
| Measurement Conditions | Light source D65, field of view 10° |
| Measuring Time | About 1 s |
| Color Space | CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex |
| Color Difference Formula | ΔE x ab, ΔE x uv, ΔE x 94, ΔE x cmc (2:1), ΔE x cmc (1:1), ΔE x 00 |
| Power Supply | Rechargeable lithium battery 3.7 V 4000 mAh, can measure 10,000 times continuously under full charge |
| Display | 480 × 320 dot matrix IPS color screen |
| Charging Port | USB (Type-C) |
| Data Transmission | USB, Bluetooth |
| Operating Temperature | 32 °F to 113 °F (0 ℃ to 45 ℃),
0 % RH to 85 % RH (no condensation) |
| Storage Temperature | -13 ℉ to 131 ℉ (-25 ℃ to 55 ℃),
0 % RH to 85% RH (no condensation) |
| Dimension | 3.39 in x 2.47 in x 6.22 in (8.6 cm × 6.25 cm × 15.8 cm) |
| Measuring Aperture | 0.32 in (8 mm) |
| Weight | About 8.11 oz (230 g) |
