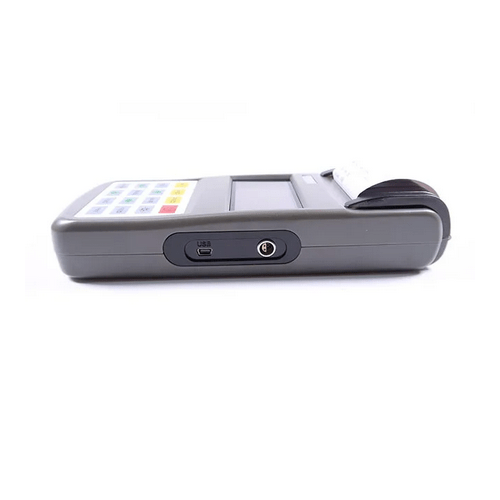

Overview
Enviro Testers portable digital coating thickness gauge adopts two thickness-measuring methods: magnetic induction (ferrous) and eddy current (non-ferrous). It can rapidly, non-destructively, and precisely measure the thickness of non-magnetic coating on magnetic metal substrate, and the thickness of non-conductive coating on non-magnetic metal substrate. This paint metre can be equipped with 6 optional probes for different applications. It is suitable for both field testing and laboratory research.
Features
- Two operation principles are adapted
- 6 probes for diverse applications
- Features two working modes
- Statistics include mean, maximum, minimum, test numbers, etc
- Memory of 500 data
- Two calibration methods for better correction
- Integrated with printer for statistics values if needed
- Low battery indication and error alarm
- Backlight for the screen
- Auto or manual shutdown
- Conform to the standards of DIN, ISO, ASMBS
Technical Specifications
| Measuring Methods | Magnetic induction and Eddy current |
| Measuring Range | 0 μm to 1250 μm, 0 μm to 40 μm (for chrome plate on copper) |
| Minimum Resolution | 0.1 μm |
| Calibration | Zero and foil calibration |
| Interface | USB2.0 |
| Statistics | Number of measurements, mean, standard deviation, maximum and minimum |
| Data Memory | 500 readings |
| Limits | Adjustable with alarm |
| Power | Li rechargeable battery |
| Temperature | 32 °F to 104 °F (0 ℃ to 40 ℃) |
| Dimensions | 8.46 in × 3.31 in × 1.65 in (215 mm × 84 mm × 42 mm) |
