Overview

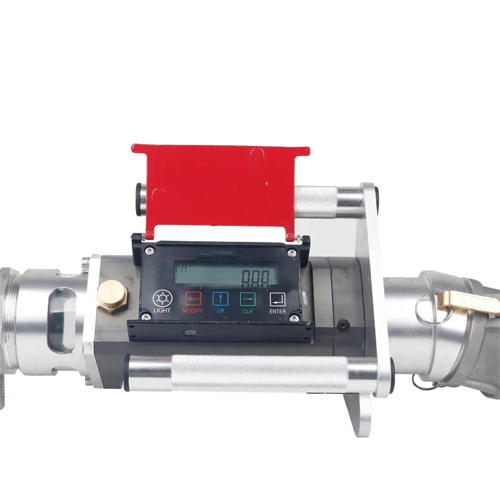

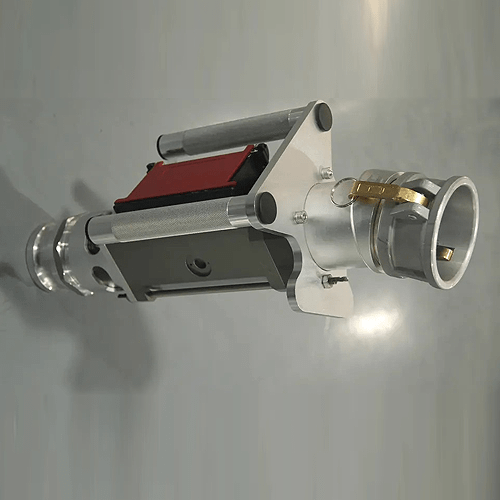

Enviro Testers portable fuel flow meter is mainly used for the gravity flow unloading of the tanker at the gas station, and can also be used for pipelines Install measurement. It can be used to measure various oil products except water. Simply and flexible installation, operation, measurement. High Precision and long service life. It can be used by connecting to the outlet of the tank without the pump
Features
- High precision and high reliability:
- Measurement accuracy of +/- 0.2%
- Repeatability accuracy of +/- 0.02%
- Temperature accuracy of +/- 0.2 ºC
- Automatic calculation of temperature compensation volume (V 20)
- Automatic measurement of oil temperature
Technical Specification
| LCD screen | English interface, 7 digits display |
| Size | 3 in (DN 80) |
| Accuracy | +-0.2% |
| Repeatability | +-0.02% |
| Body Material | Aluminum |
| Flow Range | 8 M3/H to 80 M3/H (130 LPM to 1300 LPM) |
| minimum scale | 1 L |
| Explosion-proof grade | Ex ia 11BT4 Ga |
| Protection Grade | IP 67 f |
| Max Pressure | 50.76 PSI (0.35 Mpa) |
| Viscosity Range | <=13 mm2/s |
| Power Supply | 2 x 3.6 V lithium batteries |
| Product Weight | 13.22 lb (6 kg) |
