Overview

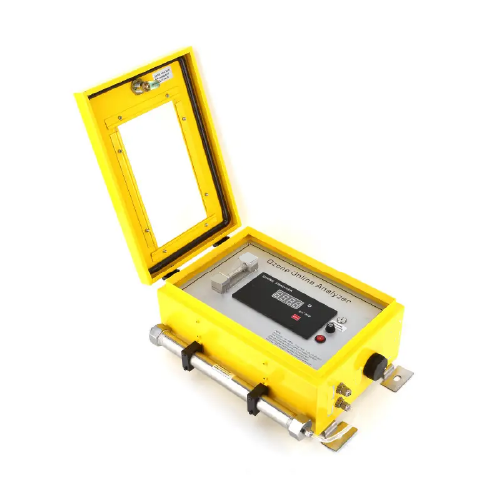

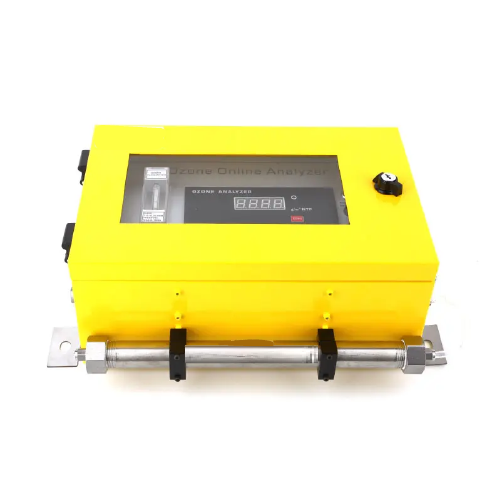

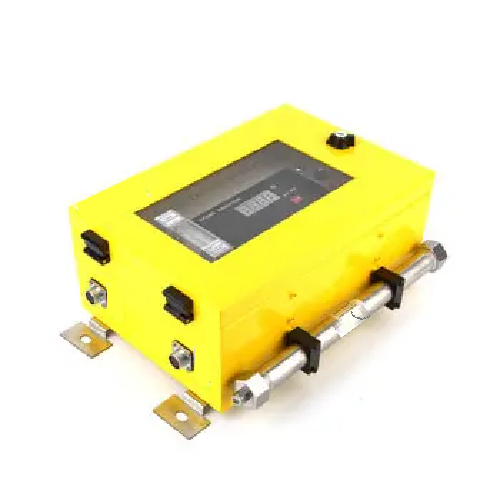

Enviro Testers portable Gas Ozone Detector is mainly used for export’s ozone concentration detection of ozone generator or residual ozone monitoring.
Features
- Measurement principle: UV ozone absorption per Beer-Lambert Law
- Method: Precise double-beam UV absorption
- UV light source: German UV lamp at 253.7 nm
- Use: IP67 for outdoor use, waterproof, dustproof, 24/7 operation
- Light pool: Split tech, no leaks, high voltage and flow resistance
- Intelligent compensation: Auto light source compensation
- Auto-zeroing: Every hour for accuracy and drift prevention
- Display: High-def digital LCD
- Outputs: 4 mA to 20 mA current, RS485 communication
- Standard setup: Host, connectors, flow meter, ozone catalyst
Technical Specifications
| Product Name | Ozone Analyzer |
| Range | 0 mg/L to 200 mg/L (Max: 350 mg/L) |
| Output Mode | 4 mA to 20 mA |
| Power Input | 110 V to 220 V AC; 50/60 Hz |
| Resolution Ratio | 0.01 g/m³ |
| Zero Drift | <±0.1% F.S. (Max: ±0.2 g/m³) |
| Measurement Accuracy | ±3% |
| Range | 0 g/m³ to 200 g/m³ |
| Type | Ozone Monitor (Waterproof) |
| Voltage | 110 V/60 Hz, 220 V/50 Hz |
| Communication Mode | RS-485 |
| Analog Output | 4 mA to 20 mA |
| Unit Size | 5.91 in x 12.99 in x 9.06 in (150 mm x 330 mm x 230 mm) |
| Net Weight | 8.82 lbs (4.0 kg) |
