Overview

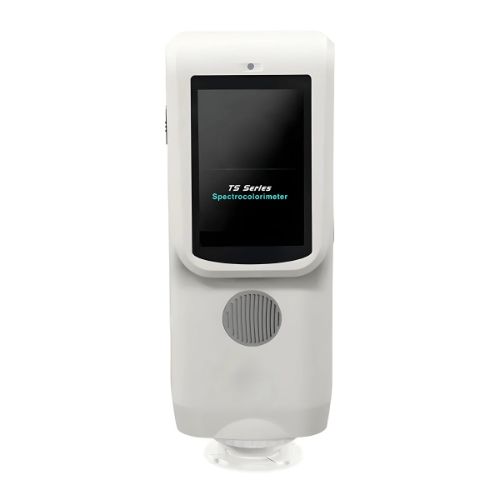

Enviro Testers portable handheld colorimeter is a portable spectrophotometer. It uses a built-in silicon photodiode array (dual-row 24 groups) sensor, an imported white board, and the repeatability E x ab can be easily controlled within 0.1%. Its powerful performance configuration and excellent inter-instrument error make color measurement more professional, while also ensuring the consistency of measurement data of multiple devices.
Features
- Adopt full-band balanced LED light source
- Silicon photodiode array (double 32 array) sensor
- Grating Spectrophotometric technology
- Place the base safely to ensure that the whiteboard is not dirty
- Professional whiteboard, a promise that will never change color forever
- Fast charging
- Novel and fashionable appearance design based on ergonomics
- Customize a single measuring
- Massive color card database
- Excellent inter- instrument error and repeatability
- Diversified data display
Technical Specifications
| Optical geometry | D per 8 (diffuse illumination, 8 ° direction reception) |
| Characteristics | Single measurement aperture for accurate color difference control in plastic and electronic, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries |
| Integrating sphere size | 1.5 in (40 mm) |
| Light source | Combined full-spectrum LED light source |
| Spectroscopic method | Planar grating |
| Sensor | Silicon photodiode arrays (dual row 24 groups) |
| Wavelength range | 400 nm to 700 nm |
| Semi Bandwidth | 10 nm |
| Measurement range | L 0 to 100 |
| Reflectivity | Can test the reflectance at a specific wavelength specified by the user
(default 550 nm) |
| Measurement aperture | Single aperture 0.31 in (8 mm) |
| Focusing method | Fixed focus |
| Specular component | SCI |
| Observer angle | 10 ° |
| Illuminant | D65, A, F2 (CWF) |
| Displayed data | Reflectivity (at 1 specific wavelength specified by the user) chromaticity value, color difference value or graph, pass or fail result, color simulation, color offset |
| Display Accuracy | 0.1% |
| Measurement time | Approximately 1.5 seconds |
| Repeatability | Chromaticity value MAV or SCI, E x ab within 0.1% (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument error | MAV or SCI, within E x ab 0.4 (Average for 12 BCRA Series II color tiles) |
| Measurement method | Single measurement, average measurement (2 times to 99 times) |
| Locating method | Stabilizer locating |
| Battery power | Lithium battery, 6000 times in 8 hours |
| Illuminant life span | 5 years, more than 3 million times measurements |
| Display | TFT true color 3.5 in (8.8 cm), capacitive touch screen |
| Data port | USB is for charging only, does not support quality control software |
| Data storage | 500 standard samples, 1,0000 samples |
| Language | Simplified Chinese, English, Traditional Chinese |
| Operating altitude | < 1.2 mi (< 2000 m) |
| Operating temperature range | 32 °F to 104 °F (0 °C to 40 °C) |
| Operating humidity range | 0% to 85% RH (no condensation) |
| Storage temperature range | -4 °F to 122 °F (-20 °C to 50 °C) |
| Storage humidity range | 0% to 85% RH (no condensation) |
| Size | 3.1 in x 2.7 in x 8.4 in (81 mm x 71 mm x 214 mm) |
| Weight | About 16.2 oz (460 g) |
