Overview

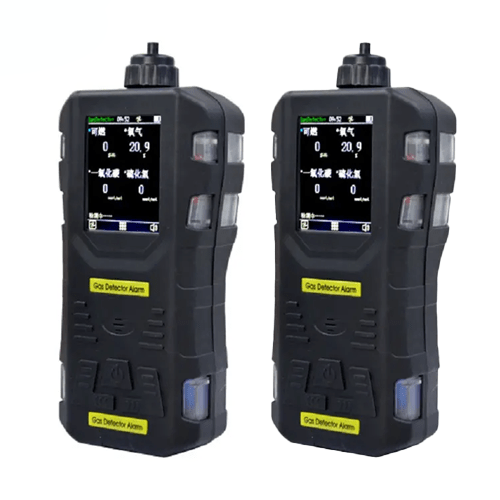

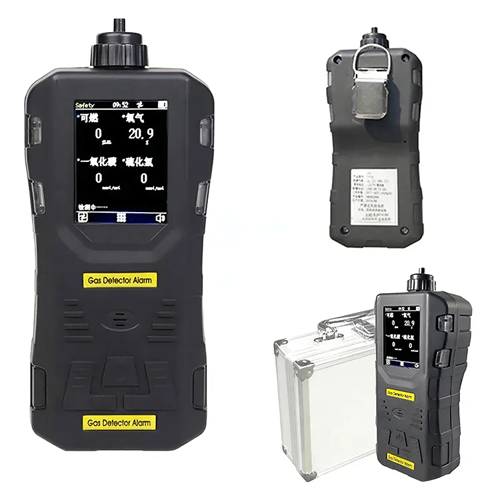

Enviro Testers portable multi gas detector is a multi-in-one gas detector. It can continuously detect combustible, oxygen, carbon monoxide, hydrogen sulfide and other toxic gases in ambient air, and detect up to 5 gases at the same time. This instrument is waterproof design and combine with rubber shell, to meet the harsh requirements of harsh environment. This gas detector uses pump-suction mode for detecting, and high-quality gas sensors are used for sensitive components, which has excellent sensitivity and repeatability. The instrument is controlled by an embedded micro-computer. It has simple operation, complete functions, high reliability, multiple adaptive abilities, and is intuitive and clear with graphic and text liquid crystal display.
Features
- Simultaneous detection of 1 to 5 gases
- Intrinsically safe circuit design
- Built-in high-power self-priming pump
- Optional sampling probe and its catheter
- Dust proof, explosion proof and waterproof design
Technical Specifications
| Detect Gas | H2S: 0 ppm to 100 ppm, NH3: 0 ppm to 100 ppm, O2: 0 VOL to 30 VOL, CO: 0 to 100 ppm, EX: 0 LEL to 100 LEL |
| Detection Principle | Electrochemical |
| Resolution | 1 ppm |
| Sampling Mode | Pump type |
| Measurement Error | ≤ ± 5 % FS |
| Working Time | ≤ 20 s continuous (non-alarm standby state) |
| Environment Humidity | ＜ 95 % RH No condensation |
| Power | DC 3.7 V lithium battery ; 2000 mAh |
| Explosion Proof Grade | Ex ib llB T6Gb |
| Ingress Protection | IP67 |
| Environment Temperature | -4 F to 122 F (-20 ℃ to 50 ℃) |
| Size | 6.88 in × 2.99 in × 1.88 in (175 mm × 76 mm × 48 mm) |
| Weight | 0.99 lb. (0.45 kg) |
