Features
- Simple to operate: one button operation
- Auto power-off function

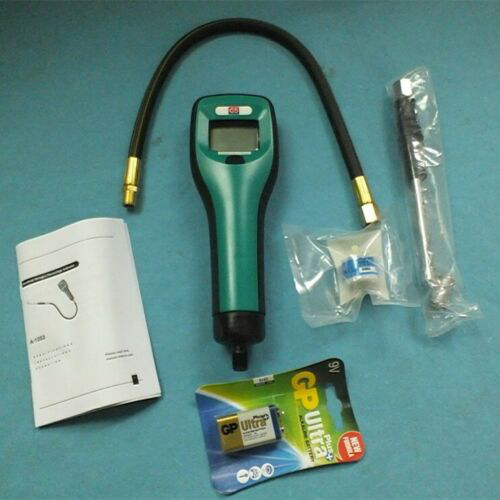

- Replaceable battery and sensor
- The nitrogen analyser gives you the actual nitrogen percentage in your tyres

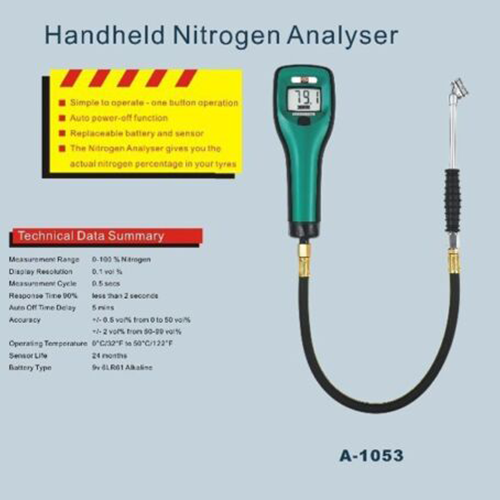

Technical Specifications
| Measurement Range | 0 % to 100 % Nitrogen |
| Measurement Cycle | 0.5 s |
| Display Resolution | 0.1 vol % |
| Response Time 90% | less than 2 seconds |
| Auto Off Time Delay | 5 min |
| Accuracy | +/- 0.5 vol % from 0 vol%-50 vol%
+/- 2 vol % from 0 vol% to 50 vol% to 99 vol% |
| Battery Type | 9 v 6LR61 Alkaline |
| Construction | Polycarbonate |
| Sensor Type | N-33 |
| Sensor Life | 24 months |
| Sensor Cable | 9.84 in (0.25 m) |
| Battery Cable | 5.90 in (0.15 m) |
| Size | 96.06 in x 31.50 in x 16.93 in (244 mm x 80 mm x 43 mm) |
| Weight | 1.83 lb (0.83 Kg) |
| Storage temperature optimal Maximum | 41 °F to 77 °F (5 °C to 25 °C)
23 °F to 140 °F (-5 °C to 60 °C) |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
