Features
- Two measurement methods: continuous measurement (CONTINUE) and single measurement (SINGLE)
- Two ways of working: direct mode (DIRECT) and group mode (Appl)
- With meter and inch conversion function
- With under voltage indication function
- There is a beep prompt during operation
- With error prompt function
- With automatic shutdown
Technical Specifications
| Measuring range | 0 µm to 6000 μm |
| Accuracy | ± [(1% to 3%) H + 1] µm, H refers to thickness of testing piece |
| Minimum resolution | 1 μm |
| Min curvature of the min area | Convex: 0.059 in (1.5 mm)Concave: 0.78 in (20 mm) |

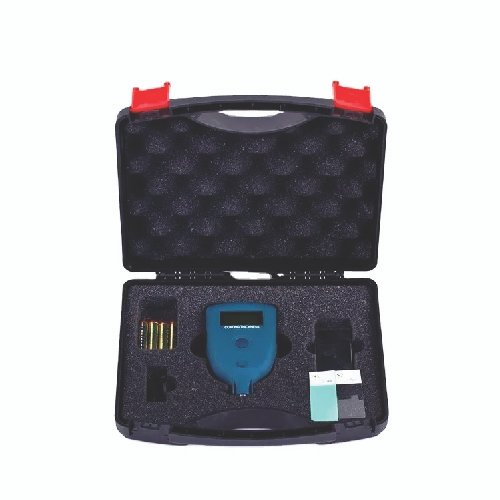

| Standard configuration | Main unit, 2 Calibration specimens (S1, S2), Fe and N Fe substrate |
| Dampness | 20% to 90% |
| Power supply | AAA Alkaline battery |
| Magnetic field | No strong magnetic field environment |
| Diameter of the min area | 0.39 in (10 mm) |
| Critical thickness of substrate | 0.01 in (0.5 mm) |
| Operating temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimensions | 5.9 in x 2.16 in x 0.90 in (150 mm x 55 mm x 23 mm) |
| Weight | 0.26 lb (120 g) |
