Overview

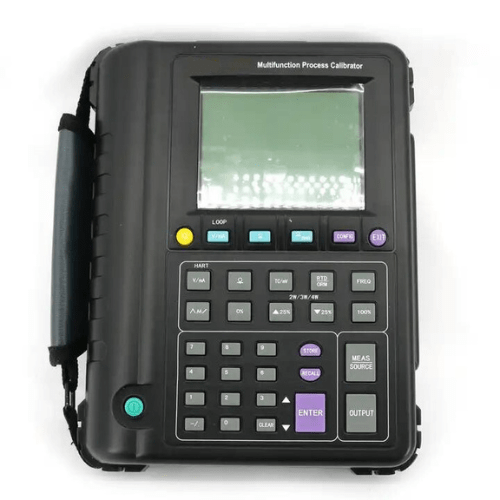

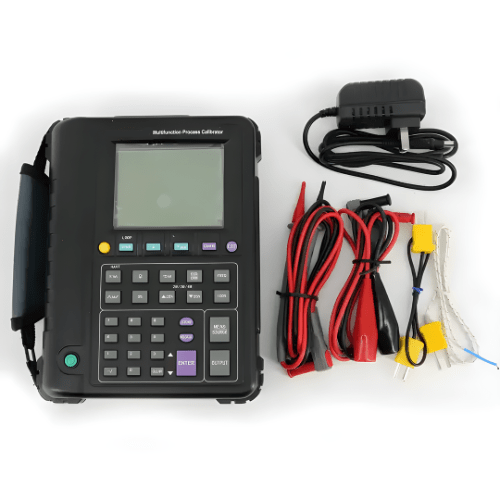

Enviro Testers portable process calibrator thermocouple temperature is a powerful, yet easy to use field calibrator. Use the measure and source functions to test and calibrate almost any process parameter.
Features
- Small, streamlined shape makes it easy to carry
- Rugged, reliable design stands up to field use
- Easy to read measure, source screen
- You view input and output simultaneously
- Measure volts, mA, RTDs, thermocouples, frequency
- Ohms to test sensors and transmitters
- Source, simulate volts, mA, thermocouples
- RTDs, frequency, ohms
- Pressure to calibrate transmitters
- Measure, source pressure using any pressure modules
Technical Specifications
| DC Voltage | Measure Signal 0 V to 30 V, 0 V to 24 V, 0 mV to 90 mV, 0. V to 20 V, 0 mV to 90 mV Measure Accuracy 0.02%+3 counts (The upper display) 0.02%+ 3 counts (The lower display) 0.01%+ 10 counts 0.02%+3 counts 0.01%+10 counts to 10 mV to 80 mV 0.01% + 10 counts (use the thermocouple jack) |
| DC Current | Measure Signal 0 mA to 24 mA 0 mA to 24 mA 0 mA to 24 mA Measure Accuracy 0.02%+ 4 counts (The upper display) 0.02%+ 4 counts (The lower display) 0.02%+ 4 counts |
| Resistance | Measure Signal 0 Ω to 400 Ω 400 Ω to 4000 Ω 5 Ω to 400 Ω 400 Ω to 4000 Ω Measure Accuracy 0.1 Ω (4 wire), 0.15 Ω (2 wire and 3 wire) 0.5 Ω (4 wire), 1 Ω (2 wire and 3 wire) 0.15 Ω (Excitation current 0.15 mA to 0.5 mA), 0.1 Ω (Excitation current 0.5 mA to 2 mA) 0.5 Ω (Excitation current 0.05 to 0.8 mA) |
| Weight | 9.92 lb (4.5 kg) |
