Overview

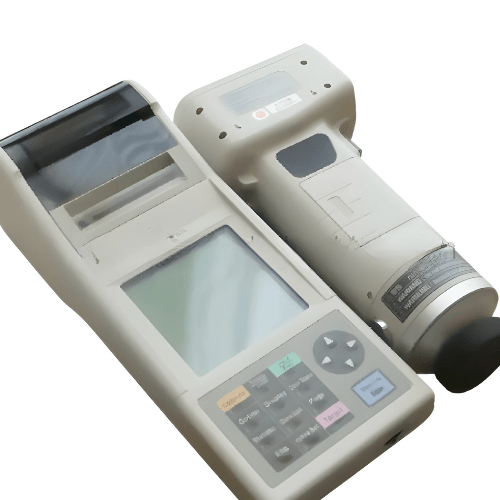

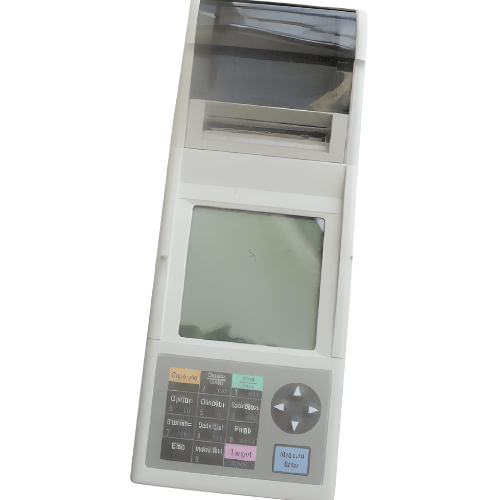

Enviro Testers Portable Reflection Color Colorimeter offers a huge number of added value features and improved versatility, while fully maintaining all optical properties and therefore, guaranties full data compatibility with the previous series. It can meet the needs of various applications, from all sorts of ingredients, foods, raw materials and finished products to pharmaceuticals and dermatological applications. Portable reflection color meter colorimeter with large aperture of 1.96 in (50 mm) is perfectly suitable for testing samples structured or uneven in surface, such as granulates, fabrics, wood, stones, bricks.
Technical Specifications
| Illumination | Diffusion or 0° angle (SCI) |
| Optical Element | Silicon-photoelectric diode (6) |
| Range | Y 0.01% to 160.00% (reflectivity) |
| Altitude | <1.24 mi (<2000 m) |
| Measure Time | 1 second |
| Minimal Interval | 3 seconds |
| Battery | About 800 times of test |
| Measure/Illume Aperture | 8% or 11% |
| Difference | Within 0.6 E x ab |
| Visual Condition | C, D 65 |
| Tolerance Determines | color tolerance (square or oval) |
| Memory | 1000 sets |
| Chroma Standard Data | 100 sets |
| Correction Channel | 20 groups (ch 00 white board correction, ch 01 to ch 19 User correction) |
| Display Configuration | LCD with backlight (15 chars x 9 lines + 1 line for icon display) |
| Interface | RS to 232 C serial port output for process or PC download x Baud rate 4800 bps, 9600 bps, 19200 bps, 9600 bps (preset) |
| Power Supply | 4 AAA alkaline battery or Ni to MH battery AC to A17 adaptor AC 120 V to 50 Hz to 60 Hz 0.4 A (used in North America and Japan) AC 230 V to 50 to 60 Hz 0.4 A (Besides North America) |
| Operating Environment | 32 ºF to 104 ºF (0 ºC to 40 ºC) |
| Humidity | 0% to 85% RH (no condensing) |
| Storage Environment | -4 ºF to 122 ºF (-20 ºC to 50 ºC) |
| Dimensions | 4.02 in x 8.54 in x 2.48 in (102 mm x 217 mm x 63 mm) |
| Weight | 19.4 oz (550 g) |
