Overview

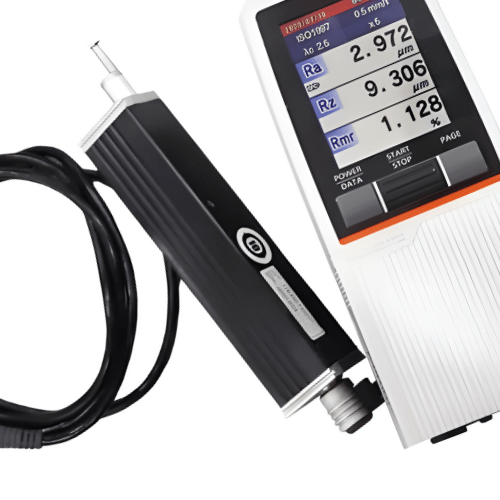

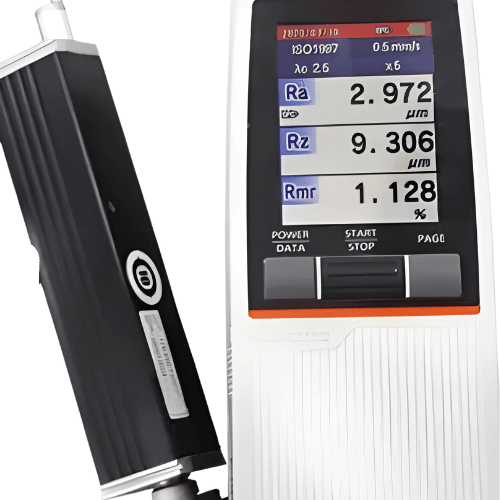

Enviro Testers Portable surface roughness tester instrument allows users to view surface roughness waveforms on the built-in, colour LCD display. The display provides operators with sectional calculation results, assessed profiles, load curves and amplitude distribution curves in addition to calculation results. This instrument can perform measurements in any orientation, including both vertical and upside-down.
Features
- Versatility: Switch between portrait and landscape modes
- User-friendly: Supports left-hand and right-hand directions
- Multilingual: Supports 16 languages
- Adaptability: Maintains clarity in all modes
Technical Specifications
| Specification | Value |
| Measuring Speed | .01, .02, .03 in/s |
| Returning Speed | .039in/s |
| Detector Z-Range | 1000, 14400, 4000μin or 100, 25, 360μm |
| Detector Z-Range Resolution | .08, .20, .80μin or .002, .006, .02μm |
| Skid Radius Of Curvature | 40mm |
| Skid Force | Less than 400mN |
| Detector Type | Differential inductance |
| Power Supply (Battery) | Rechargeable Ni-MH |
| Power Supply | AC Adapter |
| Charging Time | 4 hrs |
| Endurance | 1000 measurements (approx.) |
| External Data Storage | Micro SD card |
| Display Unit | 2.05 in x 2.59 in x 6.3 in (52.07 mm×65.79 mm×160.02 mm) |
| Drive Unit | 4.5 in x 9 in x 1 in (114.3mm×228.6mm×25.4mm) |
| Mass | 1.1 lb (498.951 gm) |
