Overview

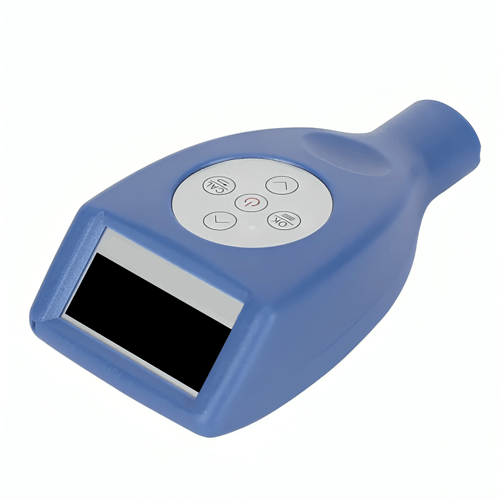

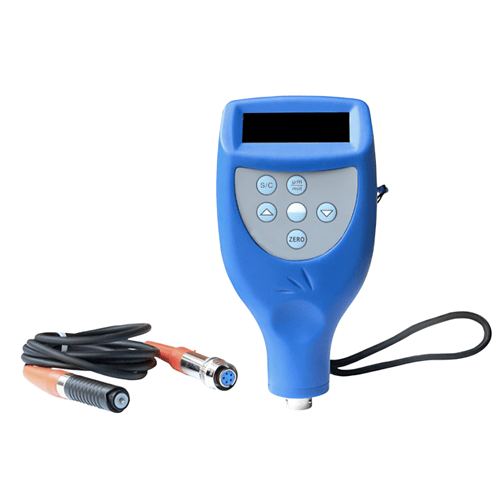

Enviro Testers Precise Coating Thickness Gauge offers precision thickness measurement of non-magnetic coatings such as paints, zinc etc. on steel (F: ferrous probe) and insulating materials on non-ferrous substrates (FN: non-ferrous.). The gauge is available with either integral or external F, N or dual FN probes. The FN probe features automatic substrate recognition to simplify operation.
Technical Specifications
| Measuring Range | 0.00 in to 49.21 in / 0 mils to 50 mils |
| Resolution | 0.39 inches / 1 mil |
| Accuracy | ± 1% to 3% or ± 0.98 in |
| Min. Radius Workpiece | Convex 0.06 inches / Concave 0.98 inches; |
| Convex 0.12 inches / Concave 1.97 inches | |
| Min. Measuring Area | 0.093 square inches |
| Min. Sample Thickness | 0.01 in (0.31 mm) |
| Metric/Imperial | Convertible |
| Power Supply | 4 x 1.5V AA Battery |
| Battery Indicator | Low battery indicator |
| Operating Conditions | 32 °F to 104 °F (0 °C to 40 °C) 10% to 90% RH |
| Dimensions | 4.96 in x 2.56 in x 1.06 in (125.9 mm x 65 mm x 26.9 mm) |
| Weight | 0.18 lbs (81.6 g) |
