Overview

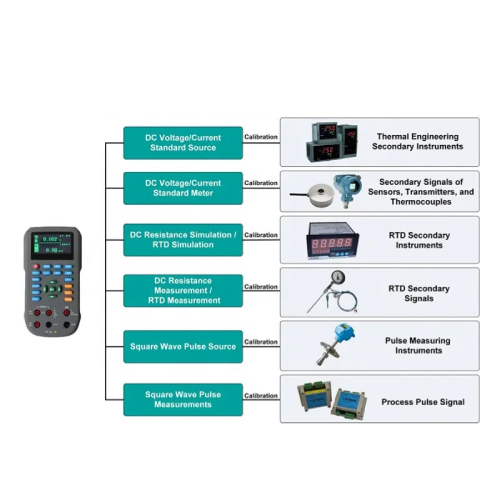

Enviro Testers process signal calibrator is a handheld thermal instrument and process signal measurement calibration instrument, with an accuracy of class 0.05, which can calibrate class 0.1 and below industrial sensors, transmitters, recorders, and other thermal process instruments.
Features
- DC voltage Output/Measurement: 10 mV to 11 V
- DC current output/measurement: 0.2 mA to 24 mA
- DC Resistance Simulation: 4 Ω to 4.8 kΩ
- DC Resistance Measurement (2-wire/4-wire): 4 Ω to 4.4 kΩ
- 6 types of Thermal Resistance (RTD) simulation and measurement
- 8 types of thermocouples (TC) simulation and measurement
- Auxiliary power: 24 V Loop mode power
- Voltage/current accuracy: Class 0.05
Technical Specifications
| Power Supply | 4 x 1.5V AA batteries; |
| Maximum Power Consumption | 10 V |
| Temperature Performance | Working temperature: 28 °F to 122 °F (-20 °C to 50 °C); Storage temperature: -4 °F to 158 °F (-20 °C to 70 °C) |
| Humidity Performance | Operating humidity: <80% at 86 °F (30 °C), <70% at 104 °F (40 °C), <40% at 122 °F (50 °C)
Storage humidity: 20% RH to 80% RH, no condensation |
| Altitude | < 11811.3 in (3000 m) |
| DCI Output/Measurement | 0.2 mA to 24 mA |
| DCV Output/Measurement | 10 mV to 11 V |
| DC Resistance Simulation | 4 Ω to 4.8 kΩ |
| DC Resistance Measurement | 4 Ω to 4.4 kΩ |
| Thermal Resistance (RTD) | 6 types |
| Thermocouples (TC) | 8 types |
| Size | 4.72 in × 2.36 in × 8.66 in (120 mm × 60 mm × 220 mm) |
| Approx Weight | 1.1 lb (500 g) |
