Overview

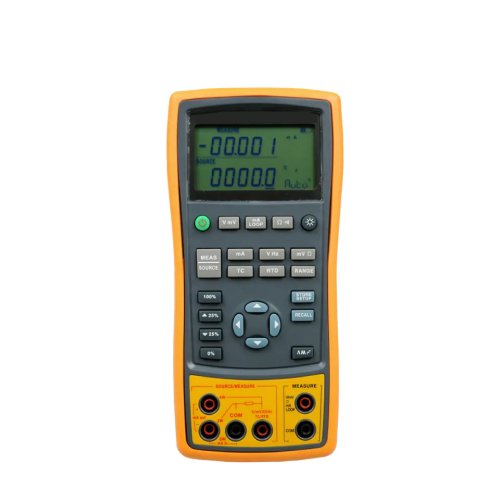

This Thermocouple and Process Calibrator has the DC voltage range of 0 – 60 V, DC mA range of 0 – 24 mA, and a temperature range of -14 °F to 131 °F.
Technical Specification
| Digital Multimeter | Integrated digital multimeter functionality |
| DC V Range | 0 V to 60 V (Upper Display ±30 V) |
| Accuracy (% Reading + counts) | 0.05% +2 |
| DC mA Range | 0 mA to 24 mA (Upper Display ±24 mV) |
| Resistance (2 wires, 3 wires) Range | 0 Ω to 44 Ω, 400 Ω to 3200 Ω |
| TC | J, K, T, E, R, S, B, N |
| RTD | Pt 100, Pt 1000, Cu 50, Cu 100 |
| Operating temperature | -14 °F to 131 °F (-10 °C to 55 °C) |
| Storage temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Relative humidity | 0 RH to 90% RH, non-condensing |
| Power supply mode | 6 7 batteries or AC adapter |
| Weight | 1.43 lb (650 g) |
| Dimensions | 7.87 in x 3.77 in x 1.85 in (200 mm × 96 mm × 47 mm) |
