Overview

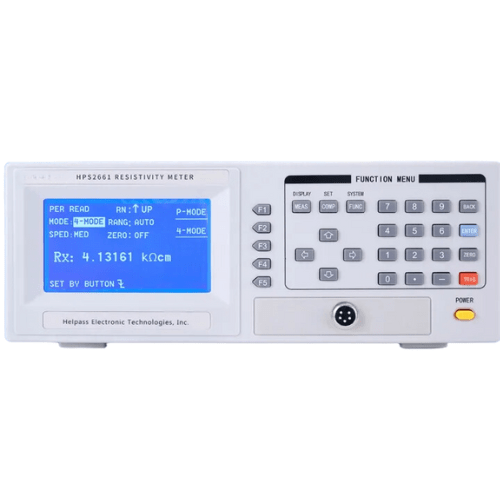

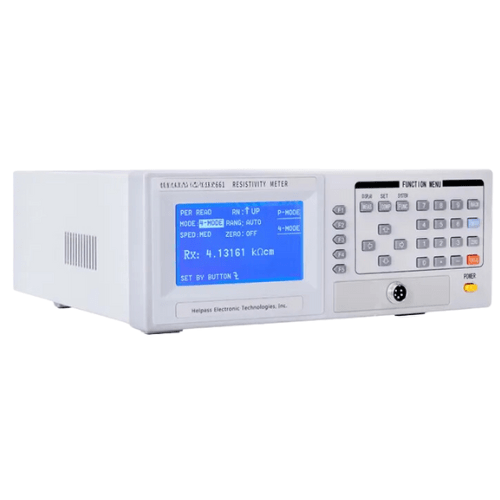

This Resistivity Tester Conductivity Meter has resistivity 10µΩ.cm to 200kΩ.cm, monitor HD LCD display, and operating environment 0°C to 40°C.
Technical Specifications
| Monitor | HD LCD display |
| Display Digits | 6 bit |
| Measuring Range And Accuracy | |
| Resistivity | 10 µΩ.cm to 200 kΩ.cm |
| Square Resistance | 50 µΩ/sq to 1 MΩ/sq |
| Analog Resistance | 10 µΩ to 200 kΩ |
| Precision | Resistivity, square resistance: 4%; analog resistance: 0.1% |
| Measurement Function | |
| Range Mode | Automatic and keep |
| Measuring Speed | Fast: 10 times / sec and medium speed: 5 times / sec and slow speed: 2 times / sec |
| Trigger Mode | Internal and manual and external |
| Sorting And Interface | |
| Sorting Function | Built-in comparators: qualified, super and under super |
| Signal | Qualified, unqualified, closed |
| Interface Configuration | RS-232C interface / HANDLER / USB Device (optional) |
| Power Requirement | 198 V to 242 V(AC), 47.5 Hz to 63 Hz |
| Power Consumption | ≤30 VA |
| Operating Environment | 32°F to 104°F (0°C to 40°C) and ≤90% RH |
| Guaranteed Accuracy Environment | 82.4±5 °F (23±5 ℃) and ≤80% RH |
| Size | 13.18 in × 4.72 in × 12.59 in (335 mm x 120 mm x 320 mm) |
| Weight | 12.12 lb. (5.5 kg) |
