Features
- Test data direct display
- Microprocessor control, step motor driven,
- Wide voltage and frequency range, power fluctuation won’t affect measuring accuracy
- Integration structure, easy operation
- Ultra-low viscosity adapter (0# rotor) available for ultralow viscosity (1.0 mPa.s to 100. 0 mPa.s) measurement
- Temperature probe optional for sample temperature measurement
- Auto-scan function, automatic recommend best suitable combine of rotor and rotation speed
- Automatic display the max measuring range of the selected combination
- RS 232 or USB 2.0 interface available
- Data processing software available(optional)
Technical Specifications
| Display Mode | Backlight LCD display |
| Rotation Speed (r/min) | 6 r/min, 12 r/min, 30 r/min, 60 r/min |
| Measuring Range mpa.s | 1 to 100000 (viscosity value under 10 shall equip 0# rotor) |
| Rotor | 1 to 4# (standard configuration) |
| Measuring Error | ±1% (Newton liquids) |
| Temperature Measuring Function | Need equip temperature probe |
| Auto-Scan Function | Auto scan and recommend best suitable combine of rotor and rotation speed |
| Automatic Display Max Measuring Range | Automatic display the max measurable viscosity value of the selected combination |

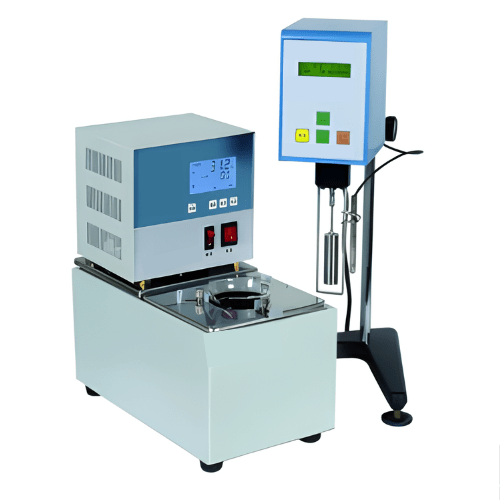

| Constant Temperature Part | Optional |
| Data Output Interface | Standard configuration |
| Data Processing Software | Standard configuration |
| Power Supply | 110 V or 60 Hz, 220 V or 50 Hz |
| Overall Size | 11.81 in x 11.81 in x 17.72 in (300 mm × 300 mm × 450 mm) |
